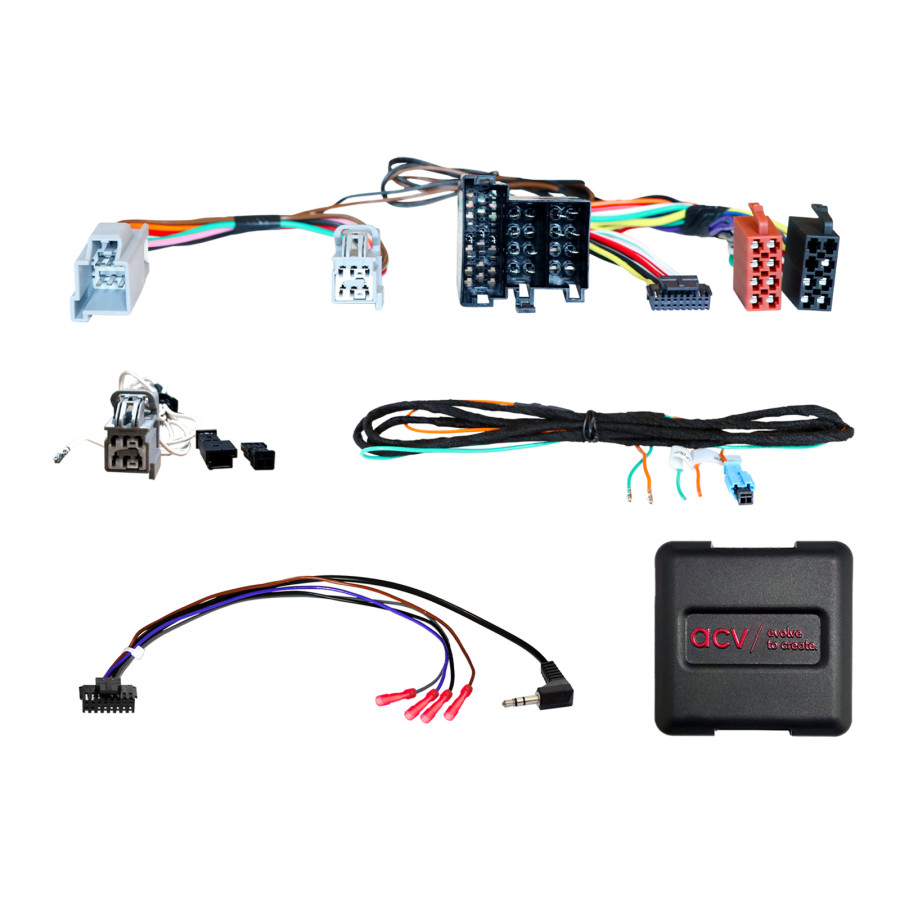

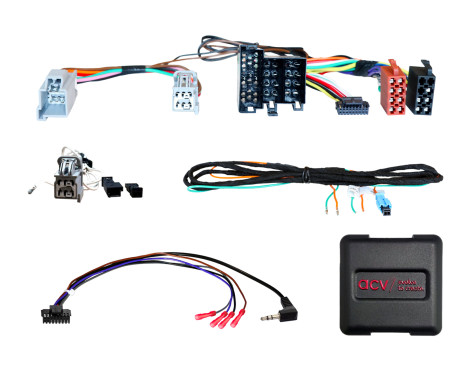

SWI Citroen/Fiat/Opel/Peugeot ISO/Mini ISO Multilead

Steering wheel control interface

Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.
Compare the illustrated connector of the adapter with
which in your car to ensure that you have the right one.

Also check if one of the
The specified original factory radio is installed in your vehicle!

Remark:

analog steering wheel control
LIN bus telephone function

Connection: ISO / Mini ISO
Connection: OEM steering wheel control > 3.5 mm jack / separate cable
Connection: 6-pin Fiat T-cable set > telephone
Connection: 6-pin Fiat T-cable set > separate cable T-connector LIN-bus control unit fuse box (see BDA)
Connection: control unit cable set fuse box > speed signal / reverse signal (see BDA)

Vehicles with radio preparation
Vehicles with inductive charging > phone function supported

Vehicles from model year 2025 onwards: 6-pin Fiat connector no longer present:

Connection of 6-pin plug loose cable with T-connector to LIN bus behind control unit fuse box driver's side cockpit:
orange/purple: LIN bus brown connector second row 9a

Steering wheel control buttons > back of steering wheel (see BDA)

Connection cable set control unit fuse box:
green: speed signal black 60-pin plug > pin 22
orange: reverse signal +12V green 60-pin connector > pin 17

Dipp switch settings for the manufacturer of the retrofitted equipment (see BDA)

Suitable for the following vehicles:

Lemon
Citroën Jumper (250) 07/2024 -2025
Citroën e-Jumper (259 07/2024 -2025
Citroën Relay (250) 2024 - 2025

Fiat
Fiat Ducato (ZAF 250) 11/2021 - 11/2023
Fiat Ducato (ZAF 250) 11/2023 - 2025
Fiat e-Ducato (ZAF 250) 04/2021 - 03/2024
Fiat e-Ducato (ZAF 250) 03/2024 -2025

Opel
Opel Movano Cargo C (Y) 01/2024 - 2025
Opel Movano Electrik Cargo C (Y) 01/2024 - 2025

The following signals are made available:

Re-imported vehicles or vehicles with non-standard software may be functionally incompatible.

Steering wheel controls

Suitable for:
Citroën Jumper 2024-2025
Citroën Relay 2024-2025
Fiat Ducato 2021-2025
Opel Movano 2024-2025

---

Guarantee	2 years
for brand	ISO
