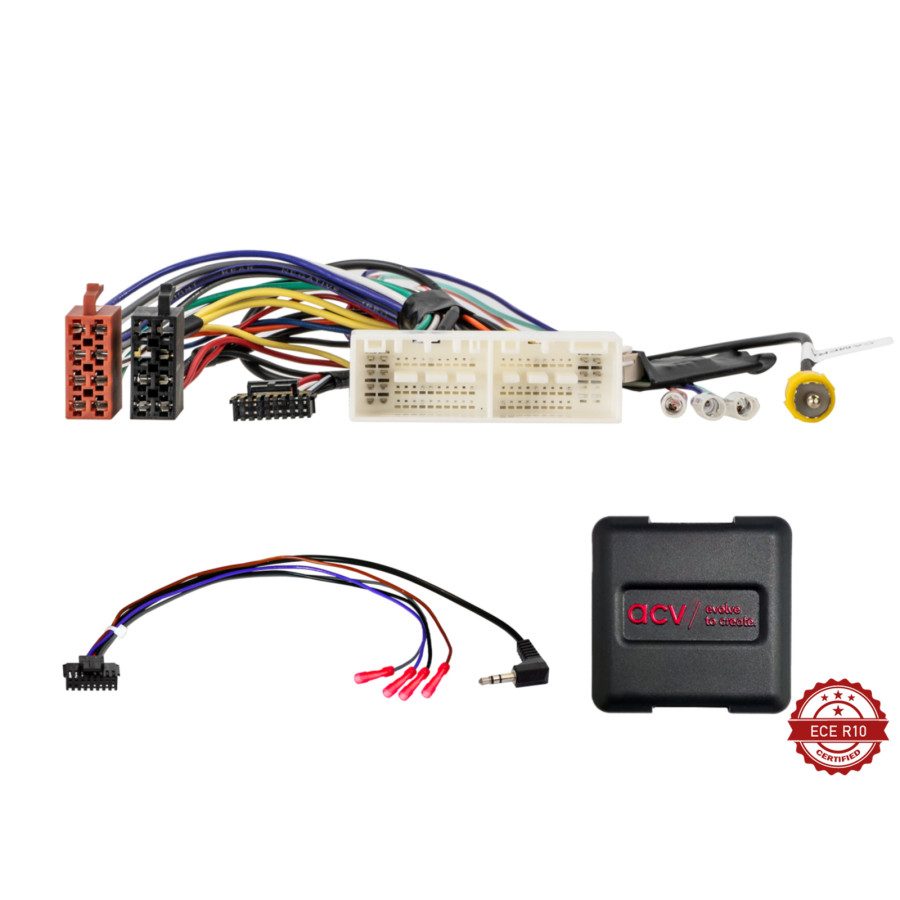

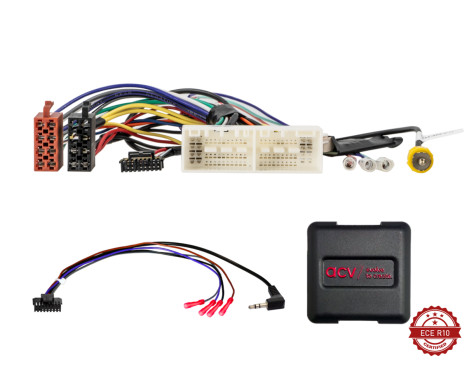

SWI Hyundai/Kia 35Pin/38Pin Multilead camera/analog (42shy016)

Steering wheel control interface

Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.
Compare the illustrated connector of the adapter with
which in your car to ensure that you have the right one.

Also check if one of the
The specified original factory radio is installed in your vehicle!

Remark:

analog

Connection: 35-pin / 38-pin Hyundai plug
Connection: OEM steering wheel control > 3.5 mm jack / separate cable
Connection: OEM reversing camera > Cinch (m) yellow

Vehicles without a CAN bus

Vehicles with CAN bus (see article image 2):
LFB Hyundai/Kia 35-pin/38-pin multilead camera/CAN bus > Item: 42xhy017

Vehicles with non-standard plug configurations and vehicles with OEM navigation:

Check the plug configuration before connection to prevent malfunctions or defects in the vehicle or the aftermarket device.

Camera power supply voltage +6V:
Before installation, check by measurement whether the connection is correct with the OEM device.

Camera video signal:
Video (+/-) Before installation, check if the connection is correct with the OEM device.

Vehicle settings are not supported

DIP switch settings for the manufacturer of the retrofit device (see BDA)

Suitable for the following vehicles:

Hyundai
Hyundai H350 Bus 06/2016 - 12/2019*
Hyundai H350 Cargo 06/2015 - 12/2019*
Hyundai i20 (GB) 12/2014 - 06/2018
Hyundai i20 (GB) 07/2018 - 08/2020
Hyundai i30 (PED) 12/2016 - 08/2018
Hyundai i30 (PED) 09/2018 - 12/2020
Hyundai i30 (PED) 10/2020 - 2023
Hyundai i40 (VF) 05/2015 - 08/2018
Hyundai Kona (OS) 11/2017 - 01/2021
Hyundai Tucson (TL) 07/2018 - 12/2020

Kia
Kia Cee'd (JD) 09/2015 - 06/2018
Kia Forte 2016 - 2018
Kia Optima (JF) 07/2016 - 08/2018
Kia Optima (JF) 08/2018 - 08/2019
Kia Picanto (YES) 04/2017 - 07/2020
Kia Picanto (YES) 07/2020 - 2023
Kia ProCeed (JD) 09/2015 - 06/2018
Kia Rio (YB) 02/2017 - 02/2020
Kia Rio (YB) 08/2020 - 04/2023
Kia Sorento (UM) 10/2017 - 08/2020
Kia Soul (PS) 11/2016 - 03/2019
Kia Sportage (QL) 01/2016 - 06/2018**
Kia Sportage (QL) 07/2018 - 01/2022**

The following signals are made available:

Re-imported vehicles or vehicles with non-standard software may be incompatible in terms of functions.

Remote control on the steering wheel

Vehicles with OEM sound system
Control via center console is not supported

Suitable for:
Hyundai I20 2014-2020
Hyundai i30 2016-2023
Hyundai i40 2016-2018
Hyundai Kona 2017-2021
Kia Cee'd 2012-2015
Kia Optima 2016-2020
Hyundai Tucson 2016-2020
Kia Sorento 2016-2020
Kia Proceed 2016-2020
Kia Sportage 2016-2022
Kia Rio 2017-2023
Kia Picanto 2017-2023

---

Guarantee	2 years
for brand	Universal
