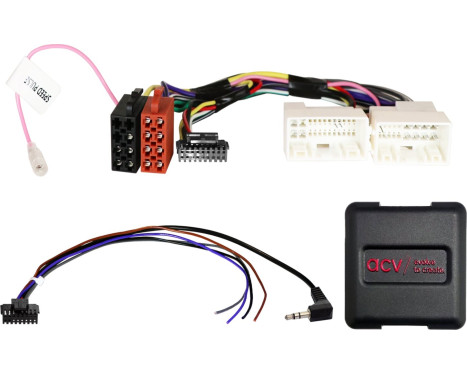

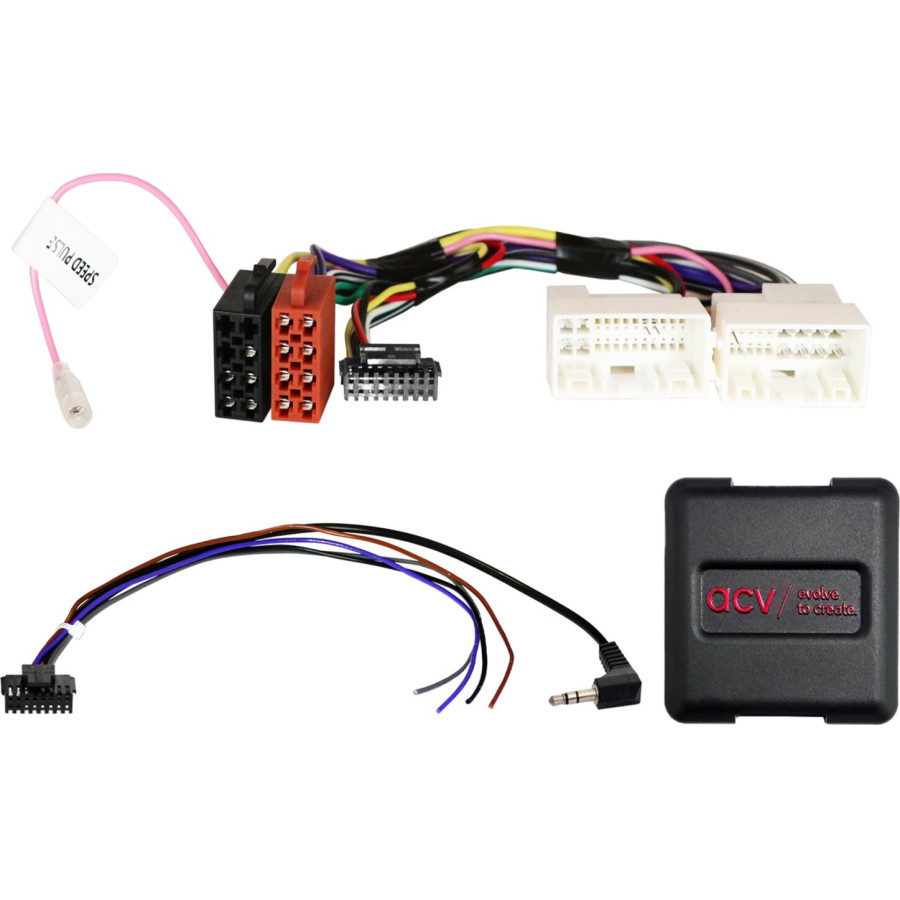

SWI Hyundai/Kia Vehicles 24Pin/18Pin Multilead Analog (42shy005)

Steering wheel control interface

Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.
Compare the adapter's illustrated connector with
the one in your car to make sure you have the right one.

Also check if any of the
specified original factory radio is installed in your vehicle!

Remark:
analog

Connection: 24pin / 18pin Hyundai connector
Connection: OEM steering wheel remote control > 3.5mm jack / loose cable

Vehicles without OEM sound system

Vehicles with different pin assignments and vehicles with OEM navigation:

To avoid malfunction or failure of the vehicle or aftermarket device, check the pin assignment before connecting.

Vehicles 2016> +12V ignition current terminal 15 fuse box fused if necessary

DIP switch settings for the manufacturer of the device to be connected later (see BDA)

Suitable for the following vehicles:

Hyundai
Hyundai Azera 2011 - 2017
Hyundai Elantra 2011 - 2015
Hyundai H1 (TQ) 03/2011 - 08/2018*
Hyundai H1 (TQ) 08/2018 - 07/2020*
Hyundai H350 06/2015 -12/2019*
Hyundai i10 (IA) 11/2013 - 12/2016
Hyundai i10 (IA) 01/2017 - 12/2019*
Hyundai i20 (GB) 12/2014 - 06/2018*
Hyundai i20 (GB) 07/2018 -09/2020*
Hyundai i30 (GD/GDH) 03/2012 - 05/2015
Hyundai i30 (GD/GDH) 05/2015 - 05/2017
Hyundai i40 (VF) 09/2011 - 05/2015**
Hyundai i40 (VF) 05/2015 - 08/2018**
Hyundai i40 (VF) 08/2018 - 07/2019**
Hyundai i45 2009 - 2014
Hyundai i800 2007 - 2021*
Hyundai ix35 (EL) 03/2010 - 09/2013
Hyundai ix35 (EL) 09/2013 - 07/2015
Hyundai ix45 2013 - 2018*
Hyundai Santa Fe (DM) 10/2012 - 11/2015
Hyundai Santa-Fe (DM) 12/2015 - 08/2018*
Hyundai Sonata (YF) 2009 - 2014
Hyundai Tucson (TL) 04/2010 - 06/2015
Hyundai Tucson (TL) 07/2015 - 07/2018**
Hyundai Tucson (TL) 07/2018 - 12/2020**

Kia
Kia Cee'd (JD) 06/2012 - 09/2015
Kia Optima (TF) 10/2013 - 10/2015
Kia ProCee'd (JD) 07/2013 - 09/2015
Kia Sorento (XM) 10/2012 - 03/2015

The following signals are given:
Re-imported vehicles or vehicles with different software may be incompatible in terms of functions.

Steering wheel remote control

*Vehicles 2016> without OEM navigation
**Vehicles with Continental OEM navigation

Replacement for the 42shy008, 42ski004, 42shy005

Suitable for:
Hyundai Elantra 20Hyundai Azera 2011-2017
Hyundai Elantra 2011-2015
Hyundai H1 2010-2020
Hyundai H350 2015-2016
Hyundai i10 2014-2019
Hyundai i20 2014-2020
Hyundai i30 2012-2015
Hyundai i40 2012-2019
Hyundai i45 2009-2014
Hyundai i800 2007-2023
Hyundai ix35 2010-2015
Hyundai ix45 2013-2018
Hyundai Santa Fe 2013-2018
Hyundai Sonata 2009-2014
Hyundai Tucson 2010-2020
Kia Cee'd 2012-2015
Kia Optima 2013-2015
Kia Pro Cee'd 2013-2015
Kia Sorento 2012-2015

---

Guarantee

2 years
