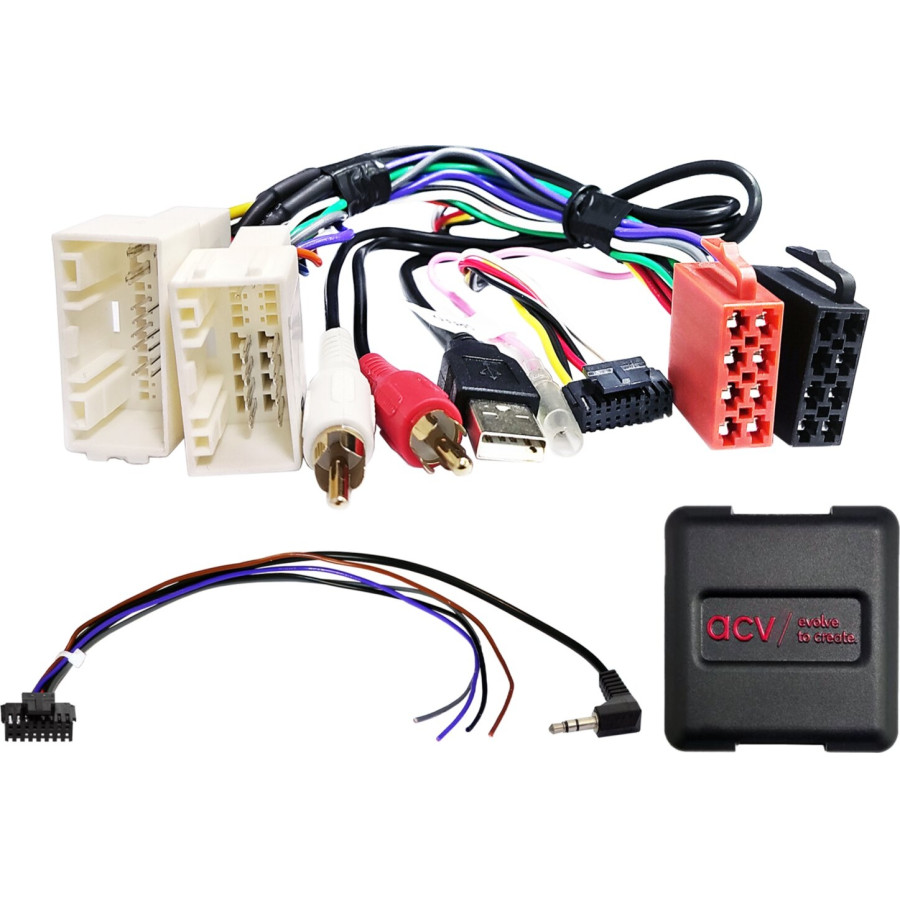

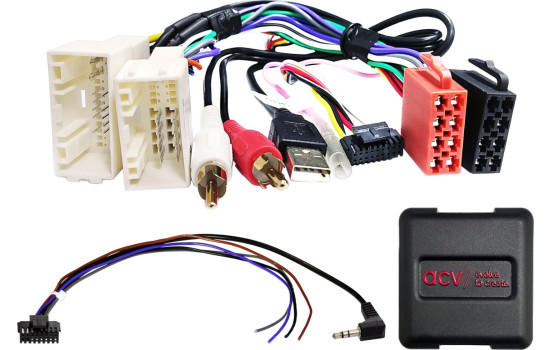

SWI Hyundai/Kia Vehicles 24Pin/18Pin Multilead USB/AUX (42shy019)

Steering wheel control interface

Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.
Compare the adapter's illustrated connector with
the one in your car to make sure you have the right one.

Also check if any of the
specified original factory radio is installed in your vehicle!

Remark:

analog

Connection: 24-pin / 18-pin Hyundai connector
Connection: OEM steering wheel remote control > 3.5mm jack / loose cable
Connection: OEM AUX > Cinch(m) red/white
Connection: OEM USB > USB-A

Vehicles without OEM sound system

Vehicles 2016>:
+12V ignition current terminal 15 fuse box fused if necessary

Vehicles with different pin assignments and vehicles with OEM navigation:

To avoid malfunctions or failures of the vehicle or aftermarket device, check the pin assignment before connecting by measuring:

AUX Connection Check the pin assignment with the OEM device by measuring.
Check USB connection mapping with OEM device by measuring

USB Apple Car Play / Android Auto not supported in all vehicles

DIP switch settings for the manufacturer of the device to be connected later (see BDA)

Suitable for the following vehicles:

Hyundai
Hyundai Azera 2011 - 2017
Hyundai Elantra 2011 - 2015
Hyundai H1 (TQ) 03/2011 - 08/2018**
Hyundai H1 (TQ) 08/2018 - 07/2020**
Hyundai H350 06/2015 -12/2019**
Hyundai i10 (IA) 11/2013 - 12/2016
Hyundai i10 (IA) 01/2017 - 12/2019**
Hyundai i40 (VF) 09/2011 - 05/2015*
Hyundai i40 (VF) 05/2015 - 08/2018*
Hyundai i40 (VF) 08/2018 - 07/2019*
Hyundai i45 2009 - 2014
Hyundai i800 2007 - 2021**
Hyundai ix35 (EL) 03/2010 - 09/2013
Hyundai ix35 (EL) 09/2013 - 07/2015
Hyundai ix45 2013 - 2018***
Hyundai Santa Fe (DM) 10/2012 - 11/2015
Hyundai Sonata (YF) 2009 - 2014
Hyundai Tucson (TL) 04/2010 - 06/2015
Hyundai Tucson (TL) 07/2015 - 07/2018**
Hyundai Tucson (TL) 07/2018 - 12/2020**

Kia
Kia Cee'd (JD) 06/2012 - 09/2015
Kia Forte 2012 - 2016
Kia Picanto (TA) 09/2011 - 04/2015
Kia Picanto (TA) 04/2015 - 03/2017
Kia Pro-Cee'd (JD) 07/2013 - 09/2015
Kia Rio (UB) 09/2011 - 01/2015
Kia Rio (UB) 01/2015 - 01/2017
Kia Rio (YB) 02/2017 - 02/2020***
Kia Rio (YB) 08/2020 - 04/2023***
Kia Soul (AM) 09/2011 - 03/2014**
Kia Soul (PS) 03/2014 - 11/2016
Kia Sportage (SL) 08/2010 - 03/2014
Kia Sportage (SL) 03/2014 - 01/2016

The following signals are provided:

Re-imported vehicles or vehicles with different software may be incompatible in functions.

Steering wheel remote control
*Signals with Continental OEM Navigation
**2016 > Original OEM Navigation
*Vehicles with OEM base unit with 4 x station buttons / 1 x FAV / 1 x BACK

Suitable for:
Hyundai Azera 2011-2017
Hyundai Elantra 2011-2015
Hyundai H1 2010-2020
Hyundai H350 2015-2016
Hyundai i10 2014-2019
Hyundai i20 2014-2020
Hyundai i30 2012-2015
Hyundai i40 2012-2019
Hyundai i45 2009-2014
Hyundai i800 2007-2023
Hyundai ix35 2010-2015
Hyundai ix45 2013-2018
Hyundai Santa Fe 2013-2018
Hyundai Sonata 2009-2014
Hyundai Tucson 2010-2020
Kia Cee'd 2012-2015
Kia Forte 2012-2016
Kia Picanto 2011-2017
Kia Pro Cee'd 2013-2015
Kia Rio 2011-2023
Kia Soul 2011-2016
Kia Sportage 2010-2016

---

Guarantee

2 years
