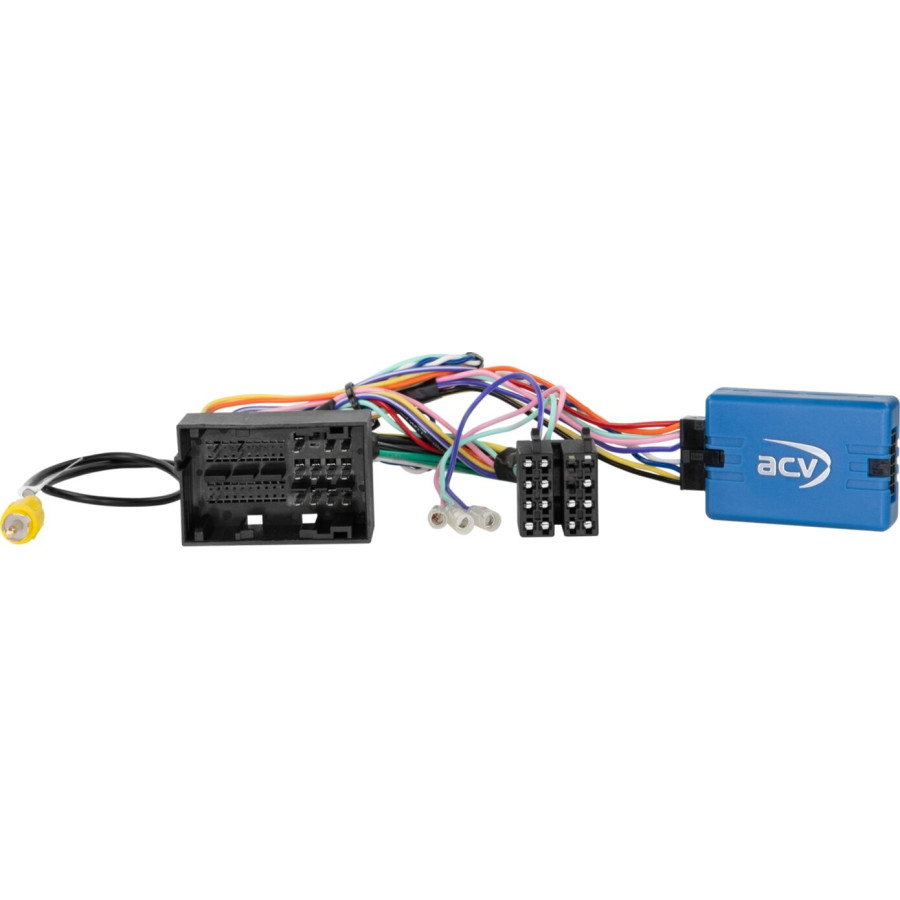

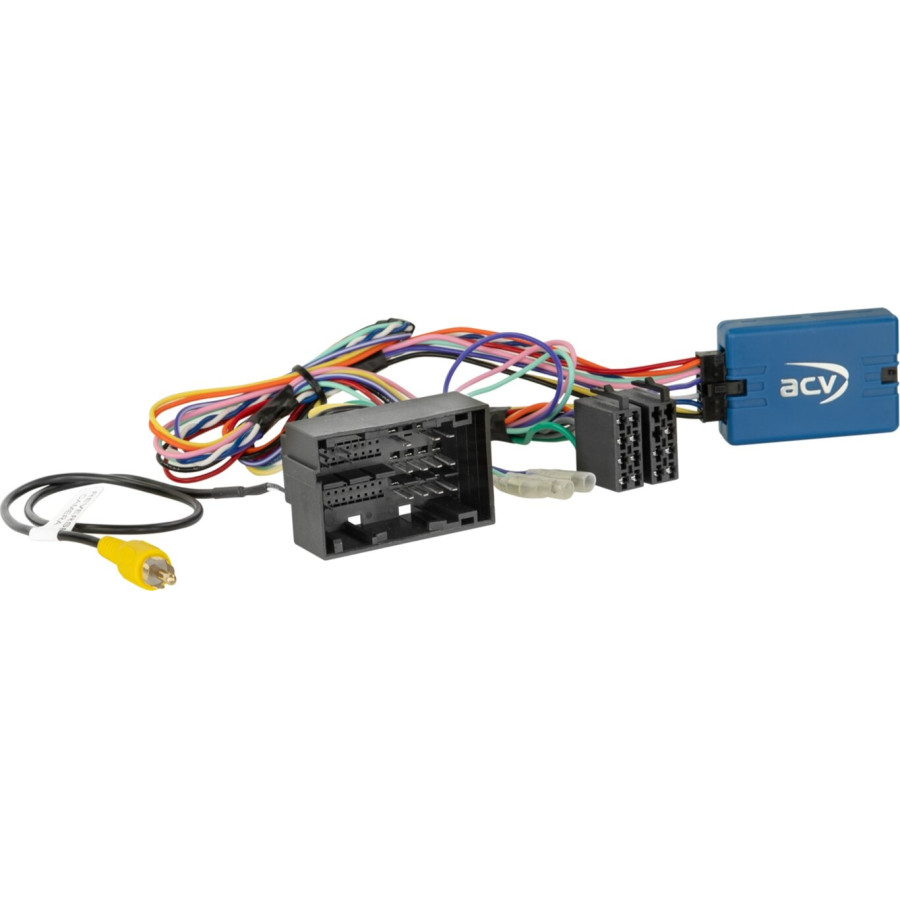

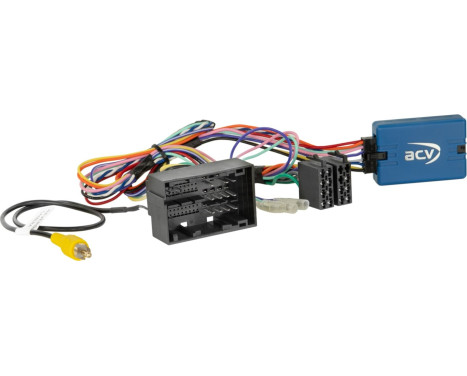

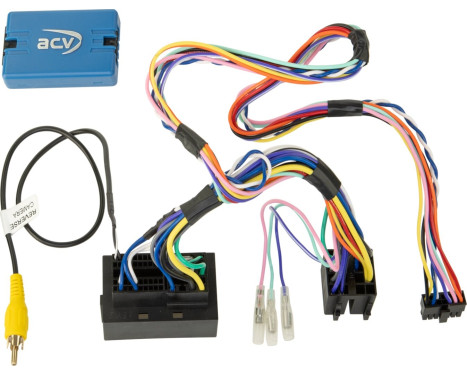

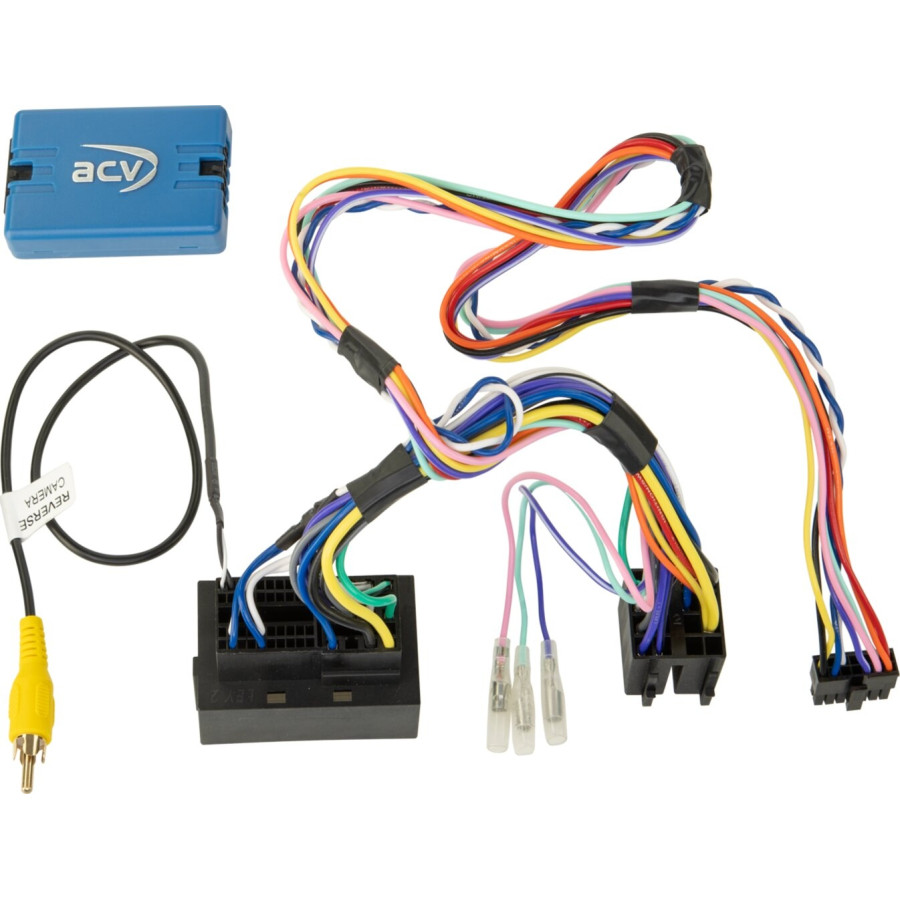

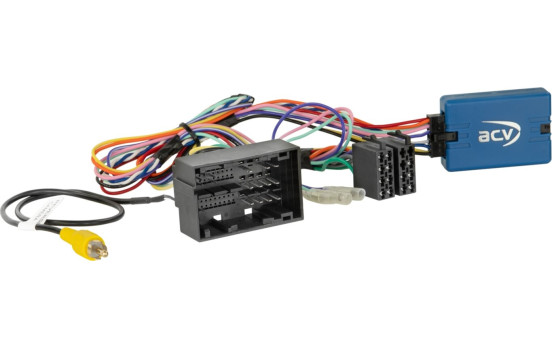

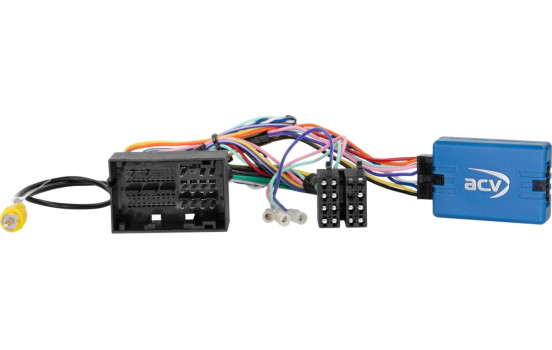

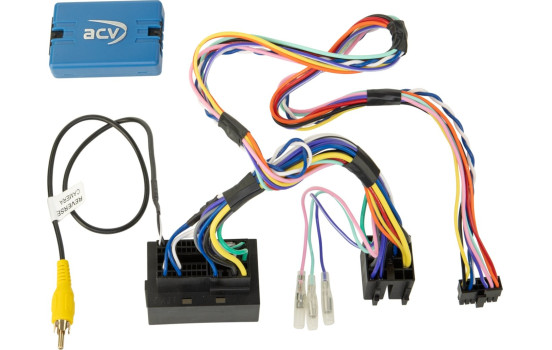

SWI Iveco Daily 2019 -2023

Steering wheel controls Iveco
Keep the original functions of your steering wheel remote control when you trade in your factory radio for an aftermarket radio.
Compare the adapter plugs shown with those in your vehicle and check whether they fit optically and technically.
Also check if one of the specified original factory radios is installed in your vehicle,

Remark:

CAN bus

Connection: 52-pin Fiat connector
Connector: OEM Camera > Cinch(m) yellow

Vehicles with Hi-Connect OEM Touchscreen device

Suitable for the following vehicles:

Iveco Daily 2019 - 2023

The following signals are provided:

Imported vehicles or vehicles with different software may be functionally incompatible.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reverse signal
pink: speed signal
green: ground GND handbrake signal

Load capacity of all outputs: 100 mA max.

Current requirement greater than 100 mA:
1 relay coil resistance 75 Ohm min.
2 relay coil resistance 150 Ohm min.

Steering wheel remote control

OEM camera supported

Connection cable for the following radio manufacturers:

LFB cable 42s/acv > Alpine jack: 42ctalpinelead
LFB cable 42s/acv > Parrot 4 pin: 42ctasteroidlead
LFB cable 42s/acv > Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
LFB cable 42s/acv > Blaupunkt/China HU/Kenwood 3 cable: 42ctchinahulead
LFB cable 42s/acv > Clarion connection: 42ctclarionlead
LFB cable 42s/acv > Garmin Vieo" RV52 Stereo Dock 3 cable: 42ctgarminlead
LFB cable 42s/acv > JVC 1 cable/jack: 42ctjvclead
LFB cable 42s/acv > Kenwood 1 cable: 42ctkenwoodlead
LFB cable 42s/acv > Multilead various devices: 42ctmultilead
LFB cable 42s/acv > Multilead various devices/Pioneer 2022>: 42ctmultilead3
LFB cable 42s/acv > Multilead various devices/Pioneer 2022>: 42ctmultilead5
LFB cable 42s/acv > Panasonic 1 cable: 42ctpanasoniclead
LFB cable 42s/acv > Blaupunkt/Kenwood/Pioneer jack: 42ctpioneerlead
LFB cable 42s/acv > Pioneer AVH/DMH/SPH 2022> connection loose: 42ctpioneerlead2
LFB cable 42s/acv > Devices with LFB learning function: 42ctsmartlead
LFB cable 42s/acv > Blaupunkt/Kenwood/Sony connection: 42ctsonylead
LFB cable 42s/acv > XZent/Zenec 1 cable: 42ctzeneclead


Suitable for:
Universal
Iveco Daily 2019-2023

---

Guarantee

2 years
