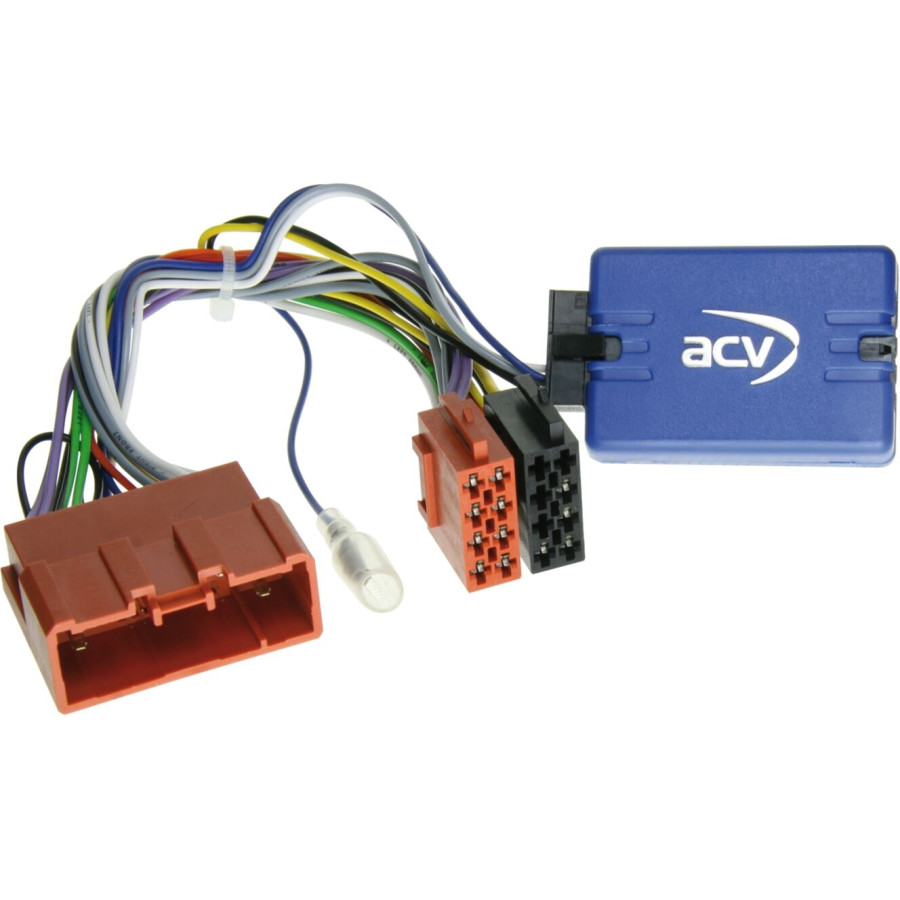

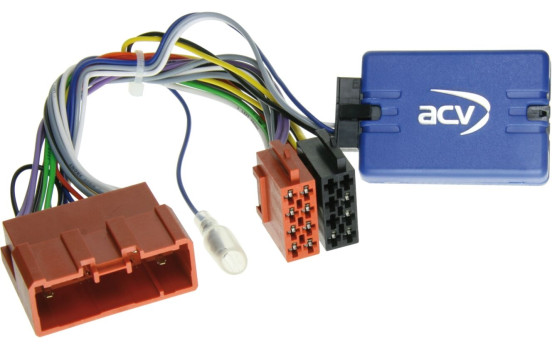

SWI Mazda 6 (GJ) 2013-2015 / CX-5 2013-> / CX-7 (ER) 2008-2012

Steering wheel controls MAZDA
Keep the original functions of your steering wheel remote control when you trade in your factory radio for an aftermarket radio.
Compare the adapter plugs shown with those in your vehicle and check whether they fit optically and technically.
Also check if one of the specified original factory radios is installed in your vehicle,

Remark:
CAN bus

Connection: 24-pin Mazda connector
Connection: OEM sound system ISO(m) > ISO(f)

Vehicles without BOSE OEM sound system

Vehicles with BOSE OEM sound system*

before connection > check assignment and function of analog connections speed / handbrake

Supported date/time settings
Supported Odometer Settings
Fader settings supported

Suitable for the following vehicles:

Mazda 6 (GJ) 02/2013 - 02/2015**
Mazda CX-5 (GH) 04/2012 - 02/2015***
Mazda CX-7 (ER) 10/2007 - 09/2009
Mazda CX-7 (ER) 10/2009 - 09/2013

Only for models without Bose sound system

The following signals are provided:

Steering wheel controls

*Cars with BOSE OEM sound system SWI Mazda 6(GJ)/CX-5(GH)/CX-7(ER) 24Pin Mazda BOSE Amp > Item: 42smz009
**Cars with Sanyo 2-DIN OEM Navigation > OEM camera connector 4 pin plug green Video+ / red Video-
***Cars with Panasonic OEM unit
Connection cable for the following radio manufacturers:
SWI cable 42s/acv > Alpine jack: 42ctalpinelead
SWI cable 42s/acv > Parrot 4 pin: 42ctasteroidlead
SWI cable 42s/acv > Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
SWI cable 42s/acv > Blaupunkt/China HU/Kenwood 3 cable: 42ctchinahulead
SWI cable 42s/acv > Clarion connection: 42ctclarionlead
SWI cable 42s/acv > Garmin Vieo" RV52 Stereo Dock 3 cable: 42ctgarminlead
SWI cable 42s/acv > JVC 1 cable/jack: 42ctjvclead
SWI cable 42s/acv > Kenwood 1 cable: 42ctkenwoodlead
SWI cable 42s/acv > Multilead various devices: 42ctmultilead
SWI cable 42s/acv > Multilead various devices/Pioneer 2022>: 42ctmultilead3
SWI cable 42s/acv > Multilead various devices/Pioneer 2022>: 42ctmultilead5
SWI cable 42s/acv > Panasonic 1 cable: 42ctpanasoniclead
SWI cable 42s/acv > Blaupunkt/Kenwood/Pioneer jack: 42ctpioneerlead
SWI cable 42s/acv > Pioneer AVH/DMH/SPH 2022> connection loose: 42ctpioneerlead2
SWI cable 42s/acv > Devices with LFB learning function: 42ctsmartlead
SWI cable 42s/acv > Blaupunkt/Kenwood/Sony connection: 42ctsonylead
SWI cable 42s/acv > XZent/Zenec 1 cable: 42ctzeneclead

Suitable for:
Mazda 6 2013-2015
Mazda CX-7 2007-2013
Mazda CX-5 2012-2015

---

Guarantee

2 years
