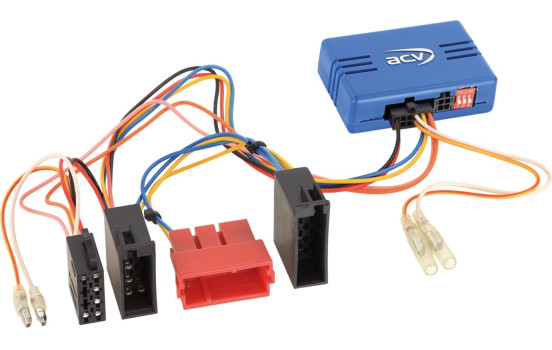

SWI Mercedes Benz various vehicles ISO/10 Pin ISO

Mercedes Benz steering wheel controls

Keep the original functions of your steering wheel remote control when you trade in your factory radio for an aftermarket radio.
Compare the adapter plugs shown with those in your vehicle and check whether they fit optically and technically.
Also check if one of the specified original factory radios is installed in your vehicle,

NB:

CAN bus

Connection: ISO / 10-pin ISO Mercedes plug > Article: 42cx27

Check dip switch position

Vehicles with radio preparation
Vehicles with Audio 5 / Audio 10 OEM unit
Vehicles with Audio 30 APS OEM navigation
Vehicles with Comand 2.0 / 2.5 OEM navigation

Vehicles with CAN bus connection: 10 Pin ISO

Vehicles with different comfort interior CAN Bus connection:

Check connection and assignment before installation with OEM unit

brown-red turned: CAN high
brown turned: CAN low

various cable colours 18-pin AMP plug possible

CAN-bus to CAN-bus distributor sill panel
CAN bus to air conditioning system
CAN bus in mini ISO connector: Pin 1 Can low / Pin 2 Can high
CAN bus in 8-pin ISO connector: Pin 7 CAN high / Pin 6 CAN low
CAN bus in 18-pin AMP connector: Pin 8 CAN low / Pin 9 CAN high / not Robert-Bosch CAN

OEM Units with ISO Block Connector ISO Expansion Speaker 10cm > Item: 1322-02

Suitable for the following vehicles:

Mercedes A-Class (W169) 10/2004 - 04/2012
Mercedes A-Class (C169) 11/2004 - 07/2011
Mercedes B-Class (T245) 06/2005 - 06/2011
Mercedes C-Class (W203) 03/2000 - 01/2005
Mercedes CLK-Class (C208) 07/1999 - 03/2003
Mercedes CLK-Class (C209) 03/2002 - 05/2005
Mercedes E-class (W210) 06/1999 - 12/2002
Mercedes SL-Class (R230) 08/2001 - 02/2006
Mercedes SLR (C199) 13/2003 - 12/2009
Mercedes Sprinter (W906) 04/2006 - 08/2013
Mercedes Sprinter (W906) 08/2013 - 05/2018
Mercedes Vito/Viano (W639) 07/2003 - 08/2010
Mercedes Vito/Viano (W639) 09/2010 - 03/2014

The following signals are provided:

Re-imported vehicles or vehicles with different software may be functionally incompatible.

pink: +12V ignition terminal 15 1.5A max.
orange: +12V lighting terminal 58 0.1A max.
white: +12V reversing signal 1.5A max.
yellow/green yellow/red: speed signal

Steering wheel remote control

Connection cable for the following radio manufacturers:

Multilead various devices: 42arc100

Alpine 3.5mm jack connection: 42arc101
Blaupunkt 2010> 3.5mm jack connection: 42arc107
Blaupunkt 2010 > Key1 / Key2 / (GND) connector: 42arc000
China HU Key1 / Key2 / (GND) connector: 42arc000
Clarion 3.5mm connector: 42arc104
Digital Dynamics Single Cable Connector: 42arc108
ESX Key1 / Key2 connector: 42arc000
JVC 3.5mm connector: 42arc104
JVC single cable connection: 42arc105
Kenwood single cable connector: 42arc105
Kenwood 2017> 3.5mm headphone jack: 42arc107
Kenwood 2020>Key1/Key2/GND connector: 42arc000
Pioneer 3.5mm connector: 42arc107
Snooper Key1/Key2 connector: 42arc000
Sony 3.5mm plug connector: 42arc107
XZent single cable connector: 42arc108
Zenec plug for single cable: 42arc108

Suitable for:
Mercedes Benz A-Class 2004-2012 (169)
Mercedes Benz B-Class 2005-2011 (245)
Mercedes Benz C-Class 2000-2005 (203)
Mercedes Benz CLK-Class 1999-2003 (208)
Mercedes Benz CLK-Class 2002-2005 (209)
Mercedes Benz E-Class 1999-2002 (210)
Mercedes Benz SL-Class 2001-2006 (230)
Mercedes Benz SLR-Class 2003-2009 (199)
Mercedes Benz Sprinter 2006-2018 (906)
Mercedes Benz Vito 2003-2023 (639)
Mercedes Benz Viano 2010-2023 (639)

---

Guarantee

2 years
