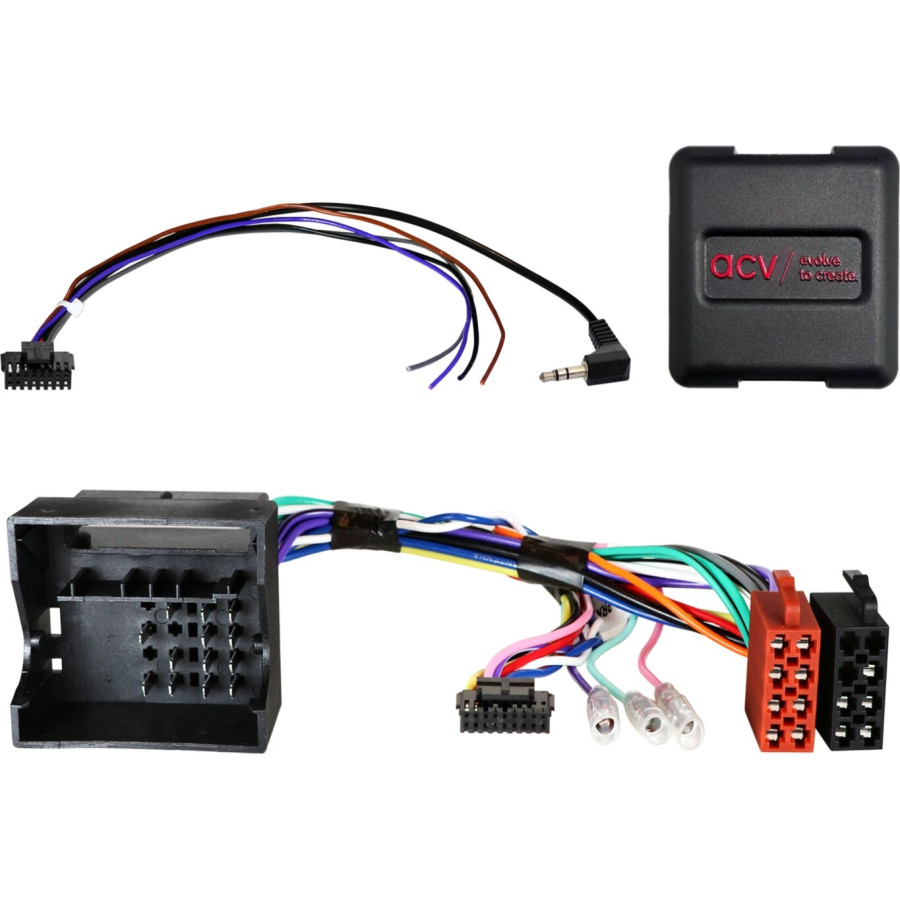

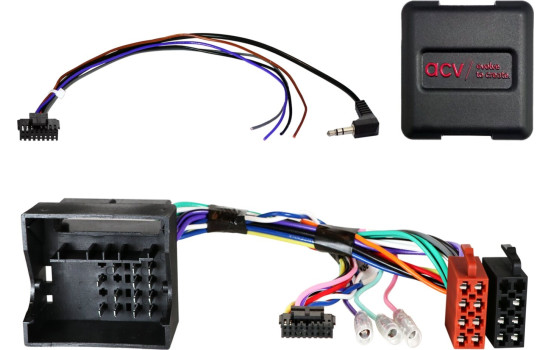

SWI Mercedes/Smart 40Pin Quadlock Multilead (42smc001)

Steering wheel control interface

Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.
Compare the illustrated connector of the adapter with
that in your car to make sure you have the right one.

Also check if any of the
specified original factory radio is installed in your vehicle!

Remark:

CAN bus

Connection: 40-pin Quadlock Mercedes connector
Connection: OEM steering wheel remote control > 3.5 mm connection / loose cable

Vehicles with 2-DIN Audio 20 OEM device
Vehicles with 2-DIN Audio 50 APS Comand NTG2 / NTG2.5 OEM Navigation

Mercedes vehicles without radio preparation
Mercedes vehicles without 1-DIN OEM device

Vehicles with Audio 50 APS Comand NTG2/ NTG2.5 OEM navigation:
Time setting not supported > Encode vehicles to Audio 20 OEM device if possible

Mercedes vehicles with Harman Kardon OEM sound system*/**

DIP switch settings for the aftermarket device manufacturer (see BDA)

Suitable for the following vehicles:

Mercedes
Mercedes A-Class (C169/W169) 10/2004 - 04/2008
Mercedes A-Class (C169/W169) 06/2008 - 06/2012
Mercedes B-Class (T245) 07/2005 - 04/2008
Mercedes B-Class (T245) 04/2008 - 09/2011
Mercedes C-Class (CL203/S203/W203) 02/2004 - 09/2007
Mercedes CLC-Class (CL203) 06/2008 - 02/2011
Mercedes CLK-Class (W209) 04/2005 - 01/2010
Mercedes CLS-Class (C219) 04/2008 - 09/2010*
Mercedes E-Class (S211/W211) 03/2008 - 01/2009
Mercedes G-Class (W463) 04/2007 - 06/2008
Mercedes G-Class (W164) 09/2008 - 06/2012
Mercedes GL-Class (X164) 09/2006 - 05/2009
Mercedes GL-Class (X164) 05/2009 - 07/2012
Mercedes M-Class (W164) 07/2005 - 04/2008**
Mercedes M-Class (W164) 10/2008 - 07/2011**
Mercedes ML (W164) 07/2005 - 04/2008
Mercedes ML (W164) 10/2008 - 07/2011
Mercedes R-Class (W251) 09/2005 - 05/2007
Mercedes R-Class (W251) 05/2007 - 05/2010
Mercedes SLK-Class (R171) 04/2008 -03/2011
Mercedes Sprinter (W906) 04/2006 - 08/2013
Mercedes Sprinter (W906) 08/2013 - 05/2018
Mercedes Vito/Viano (W639) 04/2006 - 08/2010
Mercedes Vito/Viano (W639) 09/2010 - 03/2014

Smart
Smart For Four (W454) 01/2004 - 04/2007***

The following signals are provided:

Re-imported vehicles or vehicles with different software may be functionally incompatible.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reverse signal
pink: speed signal
green: ground GND handbrake signal

Output load capacity: 250 mA max.

Current requirement greater than 250 mA:
1 relay Coil resistance 75 Ohm min.
2 relays Coil resistance 150 Ohm min.

Steering wheel remote control

*Vehicles with Harman Kardon OEM sound system > Item: 13-1190-53
**Vehicles with Harman Kardon OEM sound system > Item: 13-1190-52
***Vehicles with 2-DIN OEM CD device
***Vehicles with Comand OEM Navigation 40 Pin Quadlock

Suitable for:
Mercedes Benz A-Class 2004-2012 (169)
Mercedes Benz B-Class 2005-2011 (245)
Mercedes Benz C-Class 2000-2007 (203)
Mercedes Benz CLC-Class 2008-2011 (209)
Mercedes Benz CLK-Class 2005-2010 (203)
Mercedes Benz CLS-Class 2008-2010 (219)
Mercedes Benz E-Class 2008-2009 (211)
Mercedes Benz M-Class 2005-2011 (164)
Mercedes Benz R-Class 2006-2020 (251)
Mercedes Benz SLK-Class 2008-2011 (171)
Mercedes Benz Sprinter 2006-2018 (906)
Mercedes Benz Viano 2003-2014 (639)
Mercedes Benz Vito 2003-2014 (639)
Volkswagen Crafter 2012-2014
Smart ForFour 2004-2007

---

Guarantee

2 years
