SWI Peugeot 207/ 307/ 308/ 3008/ 607/ 807/ 5008 with parking sensors

Steering wheel control interface

Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.
Compare the illustrated connector of the adapter with
that in your car to make sure you have the right one.

Also check if any of the
specified original factory radio is installed in your vehicle!

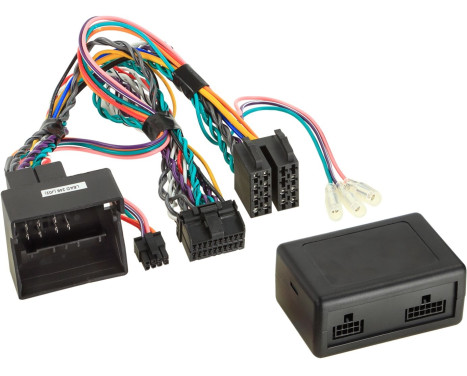

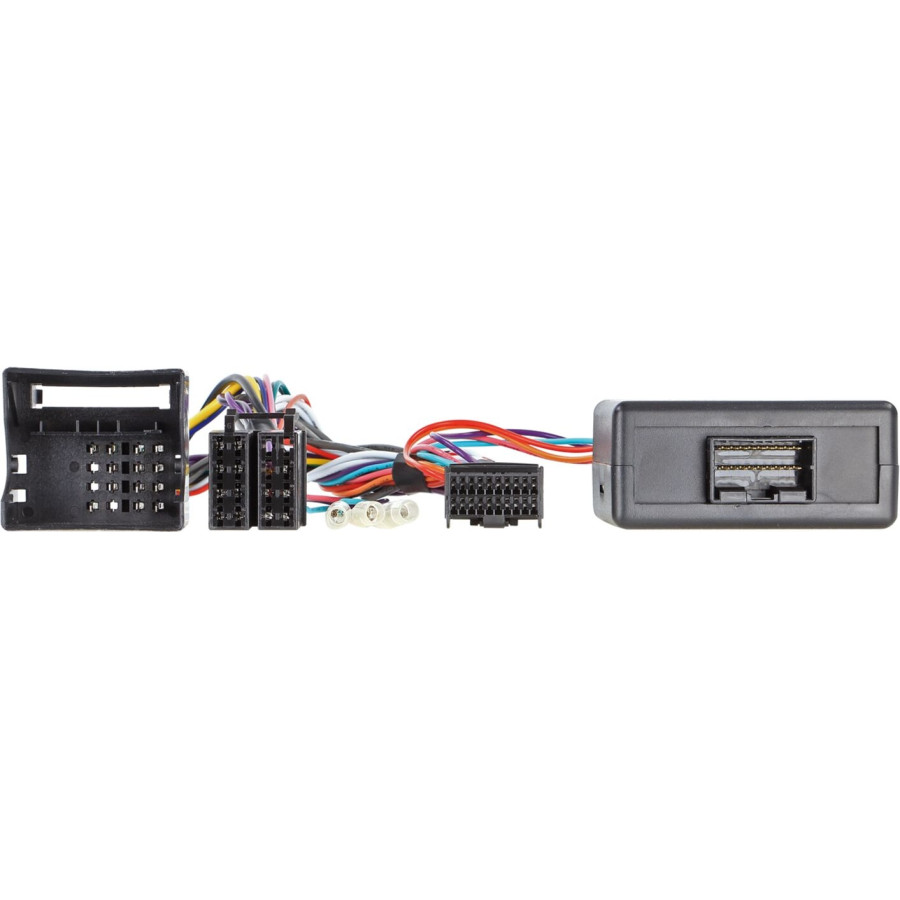

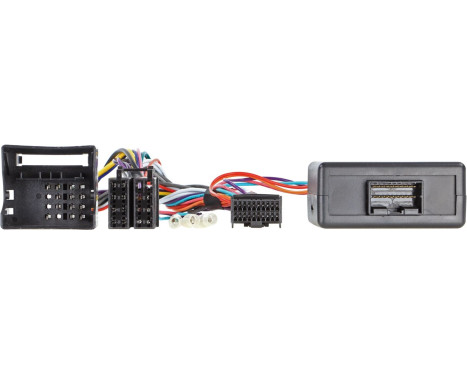

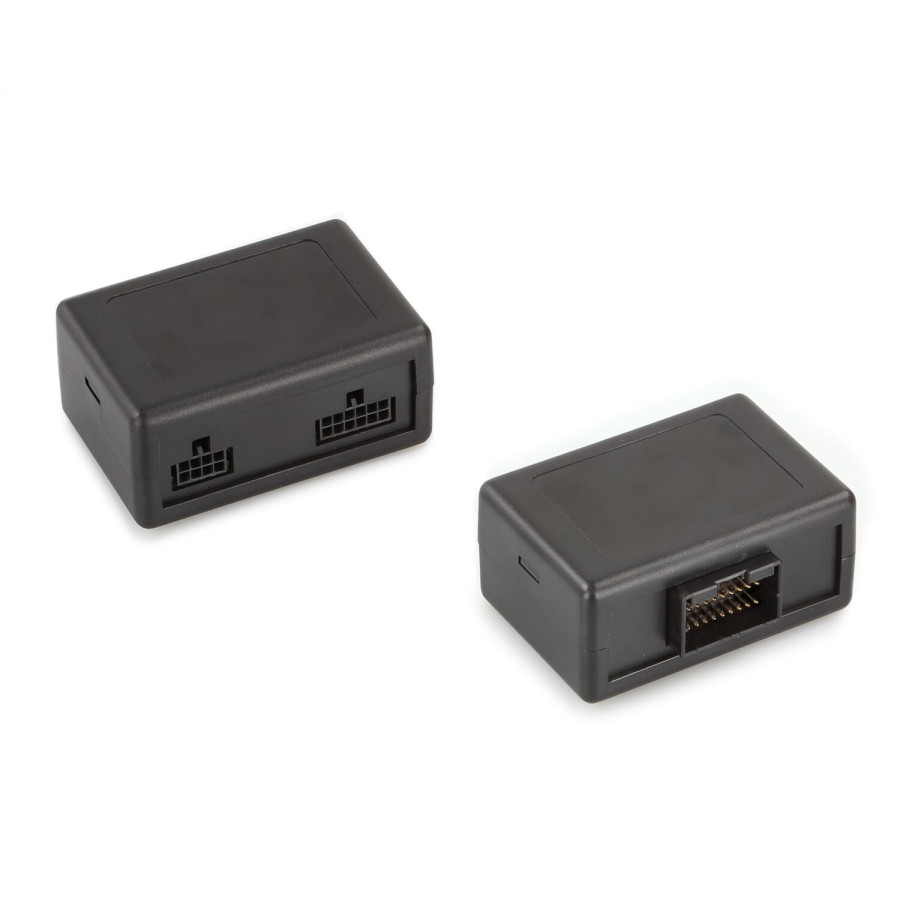

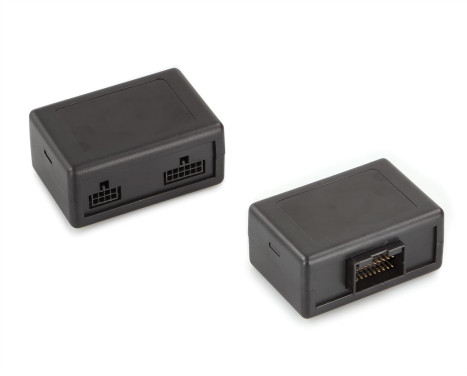

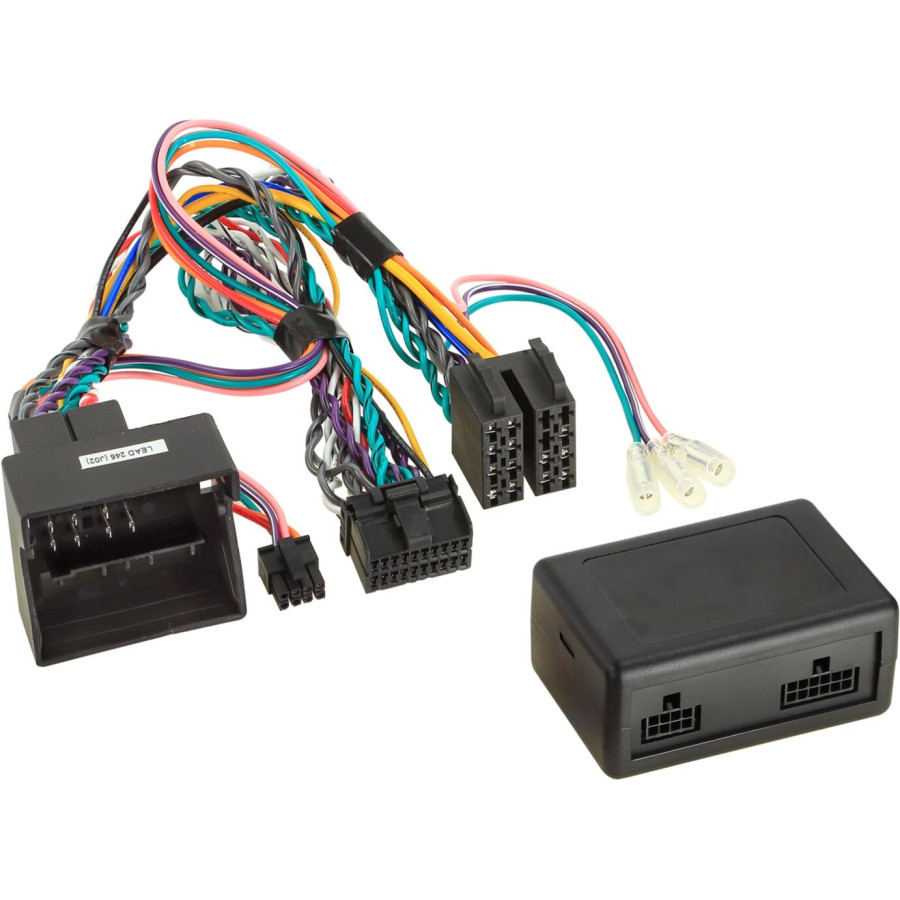

Steering wheel control adapter

Remark:

CAN bus
Connection: 40 Pin Quadlock Citroen / Peugeot connector

Vehicles with Blaupunkt / Continental / Siemens VDO RD4 OEM unit with volume control
Vehicles with PDC at the rear
Vehicles with ECO mode > +12V continuous current terminal 30 battery fused

Vehicles without Continental RD45 OEM unit with volume control*/***
Vehicles without Magneti Marelli RT3 / Harman Becker OEM navigation unit with volume control
Vehicles without JBL OEM sound system

Vehicles without OEM rear speakers > Swap front/rear speaker cables in ISO connectors
PDC display on rear speaker output

Vehicles with PDC switch > PDC display must be activated

Supported vehicle settings (see manual)

Suitable for the following vehicles:

Peugeot 207 (W/W CR/W SW/W CC) 06/2006 - 07/2015**/***
Peugeot 208 (C) 04/2012 - 04/2015**/***
Peugeot 307 (3/3 Break/3 SW/3 CC) 06/2005 - 03/2009**/***
Peugeot 407 (6/6 SW/6 Coupé) 05/2004 - 03/2011
Peugeot 607 (9) 10/2004 - 04/2009
Peugeot 807 (E) 07/2002 - 11/2014
Peugeot 308 (4/4 GTI/4 SW/4 CC) 09/2007 - 07/2015**/***
Peugeot 3008 (OU) 06/2009 - 10/2013
Peugeot 5008 (O) 10/2009 - 10/2013
Peugeot Expert (X) 02/2007 - 08/2016
Peugeot Partner (7) 05/2008 - 03/2012
Peugeot RCZ (4J) 04/2010 - 09/2015

The following signals are given:

Re-imported vehicles or vehicles with different software may be functionally incompatible.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reverse signal
pink: speed signal
green: ground GND handbrake signal

Load capacity of total outputs: 100 mA max.

Current requirement greater than 100 mA:
1 relay coil resistance 75 Ohm min.
2 relay coil resistance 150 Ohm min.

Steering wheel remote control

PDC rear supported
Supported Vehicle Settings
*Vehicles with RD45 OEM device LFB Citroen/Fiat/Peugeot/Toyota 40 Pin Quadlock > Article: 42b-3444741
**CC Cars LFB Peugeot various vehicles 40Pin Quadlock RD4 device > Article: 42spg007
***CC Cars / Vehicles with RD45 OEM device warning tone interface BMW/Citroen/Peugeot/Fiat/Ford/Volvo > Article: can-pdc

Connection cable for the following radio manufacturers:

LFB cable 42s/acv > Alpine connection: 42ctalpinelead
LFB cable 42s/acv > Parrot 4 Pin: 42ctasteroidlead
LFB cable 42s/acv > Bosch-Blaupunkt >2010 Mini ISO: 42ctblaupunktlead
LFB cable 42s/acv > Blaupunkt/China HU/Kenwood 3 cable: 42ctchinahulead
LFB cable 42s/acv > Clarion connection: 42ctclarionlead
LFB cable 42s/acv > JVC 1 cable/jack: 42ctjvclead
LFB cable 42s/acv > Kenwood 1 cable: 42ctkenwoodlead
LFB cable 42s/acv > Multilead various devices: 42ctmultilead
LFB cable 42s/acv > Multilead various devices/Pioneer 2022>: 42ctmultilead3
LFB cable 42s/acv > Multilead various devices/Pioneer 2022>: 42ctmultilead5
LFB cable 42s/acv > Panasonic 1 cable: 42ctpanasoniclead
LFB cable 42s/acv > Blaupunkt/Kenwood/Pioneer jack: 42ctpioneerlead
LFB cable 42s/acv > Pioneer AVH/DMH/SPH 2022> connection loose: 42ctpioneerlead2
LFB cable 42s/acv > Devices with LFB learning function: 42ctsmartlead
LFB cable 42s/acv > Blaupunkt/Kenwood/Sony connection: 42ctsonylead
LFB cable 42s/acv > XZent/Zenec 1 cable: 42ctzeneclead


Suitable for:
Peugeot 207 2006-2012
Peugeot 208 2012-2015
Peugeot 307 2005-2009
Peugeot 308 2007-2015
Peugeot 407 2004-2011
Peugeot 607 2004-2009
Peugeot 807 2002-2014
Peugeot 3008 2009-2013
Peugeot 5008 2009-2013
Peugeot Expert 2007-2016
Peugeot Partner 2008-2012
Peugeot RCZ 2010-2015

---

Guarantee

2 years
