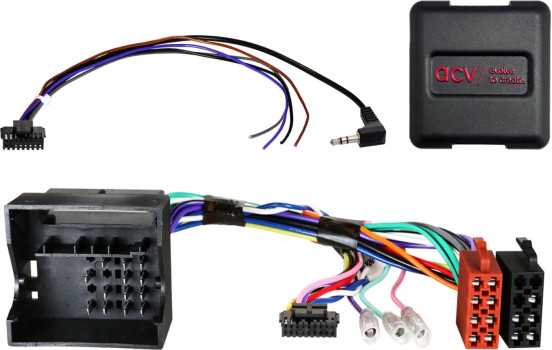

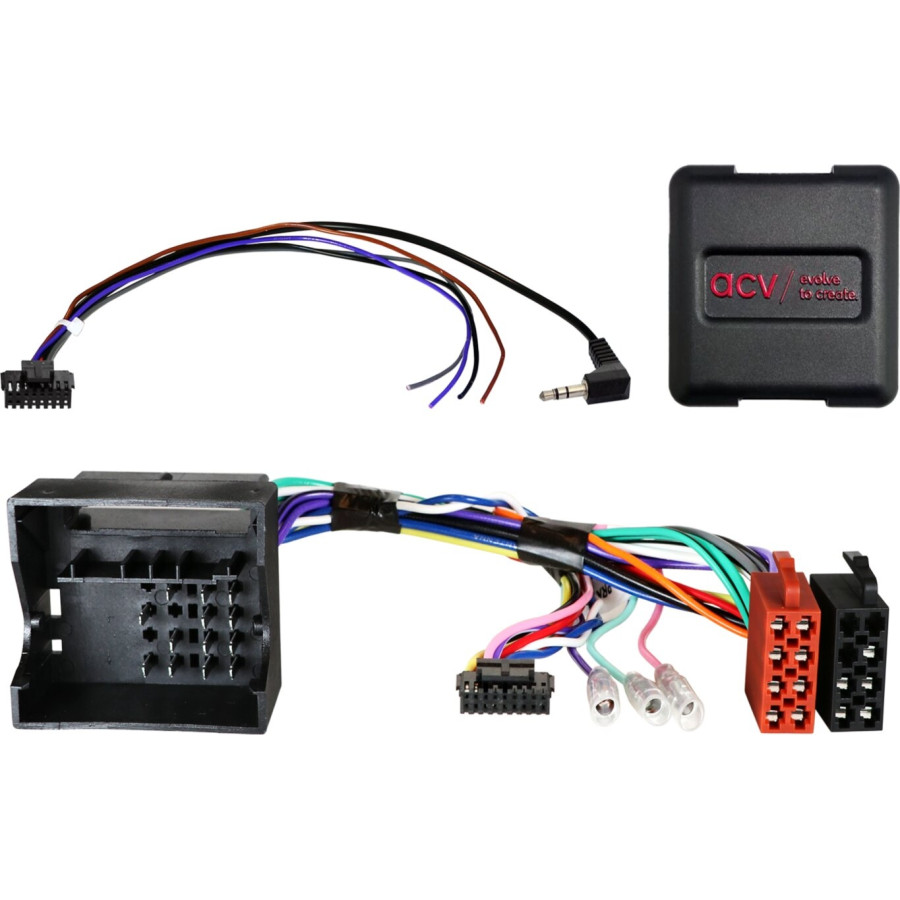

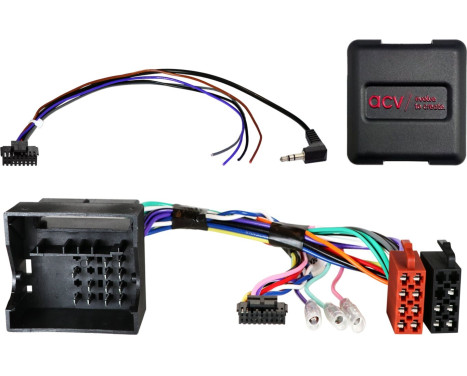

SWI Seat/Skoda/VW vehicles 40Pin Quadlock Multilead (42sst001/42ssk002)

Steering wheel control interface

Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.
Compare the illustrated connector of the adapter with
that in your car to make sure you have the right one.

Also check if any of the
specified original factory radio is installed in your vehicle!

Remark:
CAN bus

Connection: 40-pin Quadlock VAG connector
Connection: OEM steering wheel remote control > 3.5mm jack / loose cable

Vehicles without OEM sound system

Vehicles with OEM sound system:
SWC Audi/Seat/Skoda/VW various vehicles Quadlock > Article: 42a-1324-001

Vehicles Seat without Seat Exeo (3R) 03/2009 - 05/2013

Vehicles Skoda with Bolero / Stream OEM device
Skoda vehicles with Amundson / Columbus OEM navigation

Vehicles Skoda without Stream OEM device

Vehicles with RCD200 / RCD210 / RCD300 / RCD310 / RCD500 / RCD510 OEM device
Vehicles with RNS315 / RNS510 OEM navigation

Vehicles without RCD320 OEM device with ISO plugs
Vehicles without OEM sound system

DIP switch settings for the aftermarket device manufacturer (see BDA)

Suitable for the following vehicles:

Seat
Seat Alhambra (7N) 10/2010 - 04/2015
Seat Altea (5P) 06/2004 - 03/2009
Seat Altea (5P) 04/2009 - 07/2015
Seat Ibiza (6J) 06/2008 - 02/2012
Seat Ibiza (6J) 03/2012 - 06/2015
Seat Leon (1P) 09/2005 - 03/2009
Seat Leon (1P) 04/2009 - 11/2012
Seat Mii (AA) 12/2011 - 06/2019*
Seat Toledo (5P) 01/2005 - 10/2009
Seat Toledo (NH) 03/2013 - 05/2015

Skoda
Skoda Citigo (AA) 06/2012 - 05/2017*
Skoda Fabia (5J) 03/2007 - 04/2010
Skoda Fabia (5J) 06/2010 - 06/2014
Skoda Octavia (1Z) 06/2004 - 05/2009
Skoda Octavia (1Z) 01/2009 - 03/2013
Skoda Rapid (NH) 10/2012 - 04/2015
Skoda Roomster (5J) 09/2006 - 04/2010
Skoda Roomster (5J) 06/2010 - 02/2015
Skoda Superb (3T) 07/2008 - 05/2013
Skoda Superb (3T) 06/2013 - 05/2015
Skoda Yeti (5L) 08/2009 - 10/2013

VW
VW Amarok (2H) 03/2010 - 08/2016
VW Beetle (16) 11/2011 - 06/2016
VW Caddy III (2K) 10/2003 - 08/2010
VW Caddy III (2K) 09/2010 - 04/2015
VW Caddy IV (DU) 06/2015 - 09/2020**
VW CC (3C/35) 06/2008 - 08/2016
VW Eos (1F) 05/2006 - 10/2010
VW Eos (1F) 10/2010 - 04/2015
VW Fox (5Z) 04/2005 - 08/2011
VW Fusca (Brazil) 2005 - 2011
VW Golf V (1K) 11/2003 - 09/2008
VW Golf V (1KM) 06/2007 - 10/2009
VW Golf V Plus (1KP) 01/2005 - 02/2009
VW Golf VI (1K) 11/2008 - 09/2012
VW Golf VI (1KM) 11/2009 - 04/2013
VW Golf VI Plus (1KP) 03/2009 - 01/2014
VW Jetta III (1K5/1KM) 09/2005 - 10/2010
VW Jetta IV (162) 01/2011 - 08/2014
VW Magotan (Asia) 2005 - 2011
VW Passat B6 (3C2) 11/2005 - 07/2010
VW Passat B6 (3C5) 08/2005 - 07/2010
VW Passat B7 (3C/362) 11/2010 - 10/2014
VW Polo IV (9N) 03/2005 - 03/2009
VW Polo V (6R) 06/2009 - 01/2014
VW Scirocco III (13) 08/2008 - 04/2014
VW Sagitar (China) 2005 - 2011
VW Sharan II (7N) 08/2010 - 04/2015
VW Suran 2009 - 2015
VW Tiguan I (5N) 10/2007 - 02/2011
VW Tiguan I (5N) 06/2011 - 04/2016
VW Touareg I (7L) 11/2006 - 02/2010
VW Touran (1T) 01/2003 - 09/2006
VW Touran (1T) 11/2006 - 04/2010
VW Touran (1T) 08/2010 - 04/2015
VW UP! (AA) 12/2011 - 06/2016*
VW Vento (Mexico) 2005 - 2011
The following signals are given:

Vehicles that are re-imported or vehicles with different software may be functionally incompatible.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reverse signal
pink: speed signal
green: ground GND handbrake signal

Output load capacity: 250 mA max.

Current requirement greater than 250 mA:
1 relay Coil resistance 75 Ohm min.
2 relays Coil resistance 150 Ohm min.

Steering wheel remote control

*Vehicles without OEM sound system
**Vehicles with Composition Audio MIB Entry OEM device with Front AUX/SD/USB
