SWI Toyota Various models from 2011->

Steering wheel control interface

Retain the original steering wheel remote control functions,
if you trade in your factory radio for an aftermarket radio.

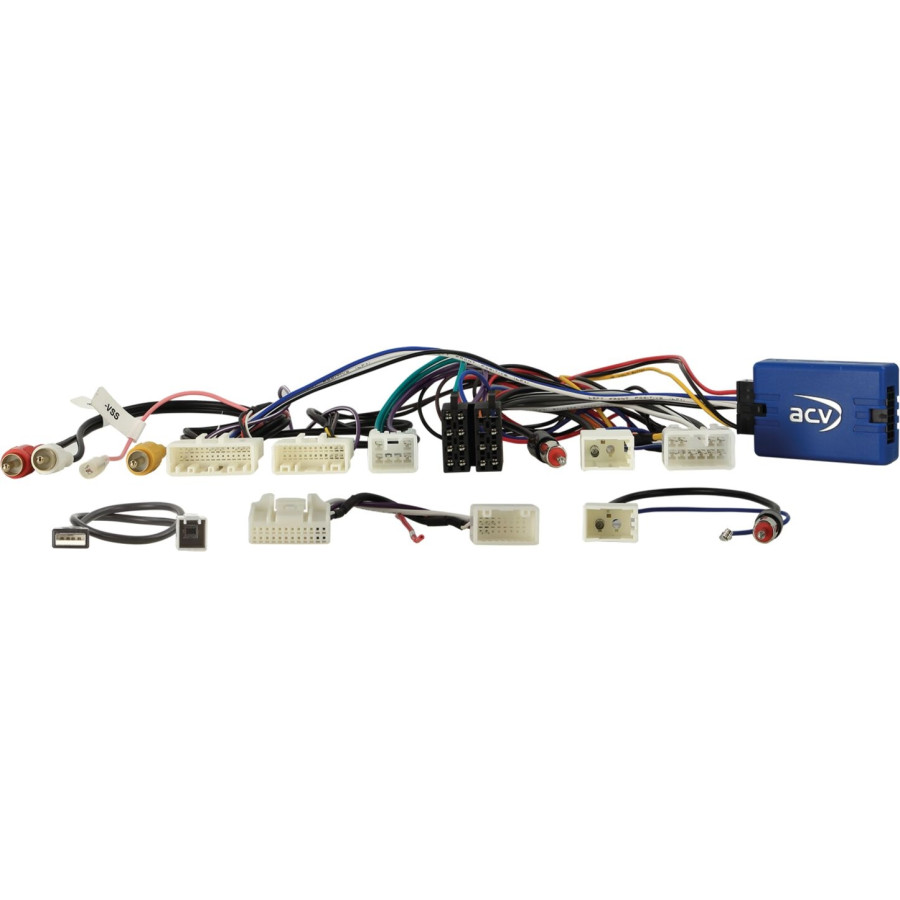

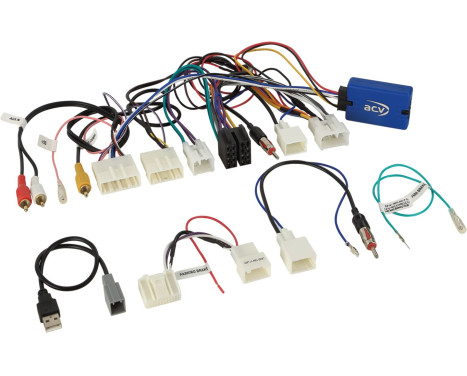

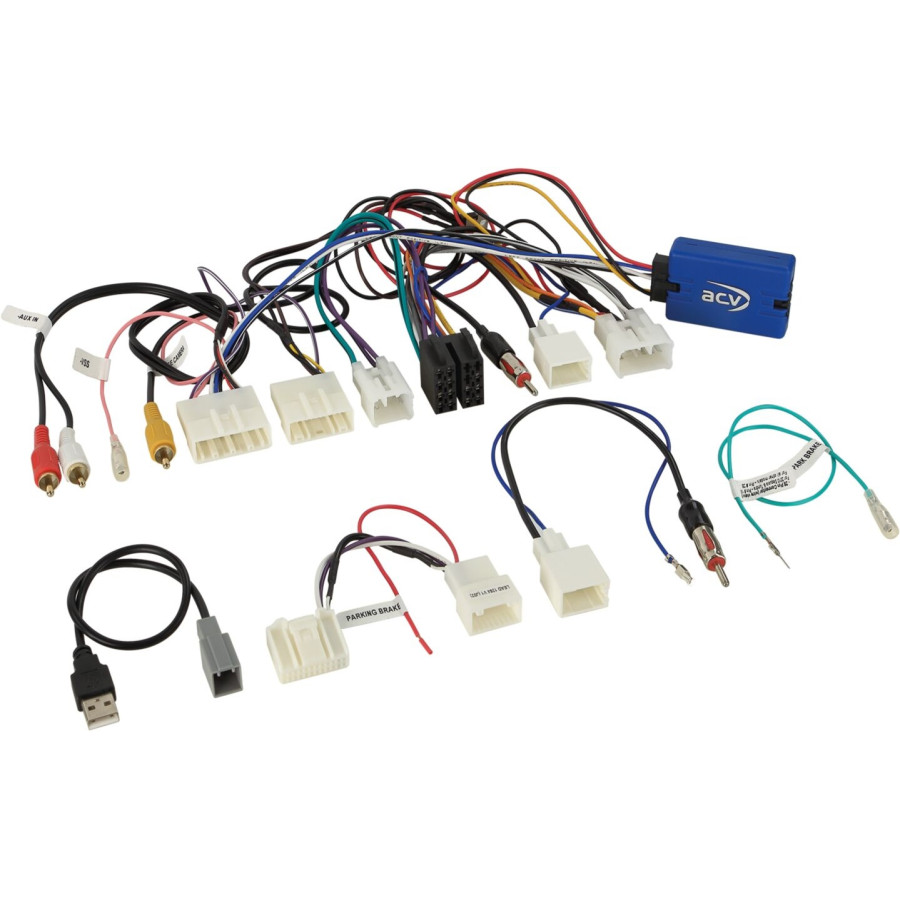

Compare the illustrated connector of the adapter with
that in your car to make sure you have the right one.

Also check if any of the
specified original factory radio is installed in your vehicle!

Notes:
analog

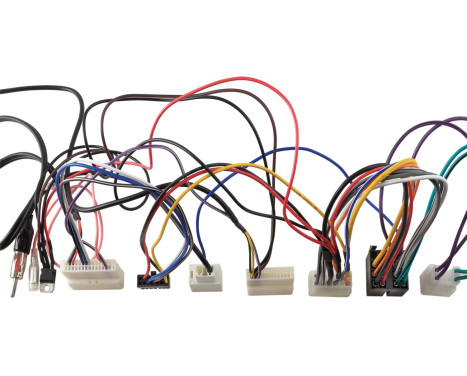

Connection: 10 pin / 6 pin / 28 pin Toyota connector
Connection OEM antenna > DIN(m)
Connection: 16 pin / 24 pin OEM camera > Cinch(m) yellow camera input
Connection: OEM USB > USB-A
Connection: OEM AUX > Cinch(m) red/white

Vehicles with Matsushita / Fujitsu Ten OEM unit
Vehicles with/without reversing camera

Vehicles without 360° camera system*

Camera supply voltage: +6V

+6V supply voltage > check for correct pin position with factory device before installation (always check polarity)
Video +/- > Before installation, check for correct assignment with OEM device
USB > check for correct assignment with OEM device before installation
AUX > check for correct assignment with OEM device before installation


Suitable for the following vehicles:

Toyota Auris (E15) 03/2010 - 01/2013
Toyota Auris (E180) 01/2013 - 08/2015
Toyota Auris (E180) 09/2015 - 03/2019
Toyota Avensis (T27) 01/2012 - 06/2015
Toyota Corolla 2008 - 2014
Toyota Corolla (E170) 04/2014 - 12/2016
Toyota Corolla (E170) 12/2014 - 12/2018
Toyota Fortuner 2011 - 2015
Toyota Hilux (N25) 12/2011 - 08/2016
Toyota Hilux (AN1P) 11/2016 - 09/2020
Toyota Innova 2011 - 2015
Toyota Prius ZVW30/ZVW35 (XW3) 04/2012 - 02/2016
Toyota Prius+ (XW3/XW4) 06/2012 - 01/2015
Toyota RAV4 (XA3) 04/2009 - 05/2010
Toyota RAV4 (XA3/XA4) 04/2013 - 01/2016
Toyota RAV4 (XA3/XA4) 01/2016 - 12/2018*
Toyota Verso (AR2) 04/2009 - 01/2013
Toyota Verso (AR2) 04/2013 - 06/2018
Toyota Verso-S (XP12) 03/2011 - 07/2014
Toyota Verso-S (XP12) 07/2014 - 12/2015
Toyota Yaris (XP13) 11/2011 - 08/2014
Toyota Yaris (XP13) 09/2014 - 03/2017
Toyota Yaris (XP13) 04/2017 - 08/2020


The following signals are given:

Steering wheel remote control

+12V reversing signal > analogue (behind trunk trim if applicable +12V red 0.5mm 4 core wiring harness.

*vehicles with 360° OEM camera system SWI Toyota various vehicles 10Pin/6Pin/28Pin//24Pin > item: 42sty019


Suitable for:
Toyota Auris 2010-2019
Toyota Avensis 2012-2015
Toyota Corolla 20008-2018
Toyota Fortuner 2011-2015
Toyota Hilux 2011-2020
Toyota Innova 2011-2015
Toyota Prius 2012-2016
Toyota Prius + 2012-2015
Toyota RAV4 2009-2018
Toyota Yaris 2011-2020
Toyota Verso 2009-2018
Toyota Verso-S 2011-2015

---

Guarantee

2 years
