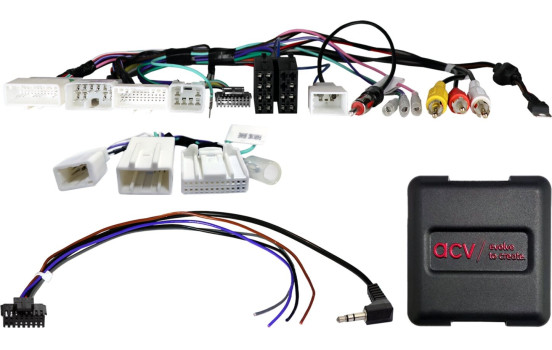

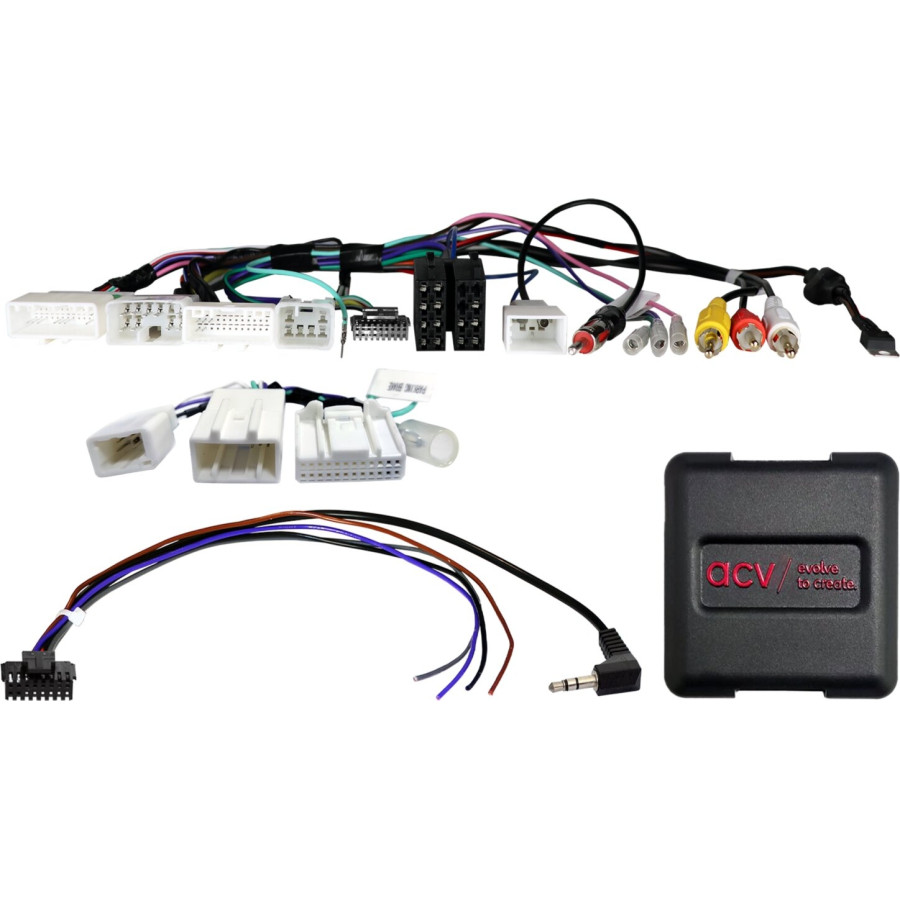

SWI Toyota Vehicles 28Pin Multilead USB/Antenna/Camera (42sty015)

Name: SWI Toyota Vehicles 28Pin Multilead USB/Antenna/Camera (42sty015) | Winparts.eu - Steering wheel control
Brand: ACV
SKU: 1986257
Price: 135.99 EUR
Availability: InStock

Product number: 1986257

Manufacturer number: 42xty015

EAN: 4026724674491

€ 135,⁹⁹

Incl. VAT

View product specifications

Not available

Free 30 days exchanges
Quality car parts
EU Delivery: 2-3 days
Ask our experts for advice

Customer service: +31 85 070 52 25

Ask your question at our product specialists.

Questions and answers.

Fit guarantee, show parts suitable for your vehicle.

Please manually select your vehicle

Specifications

Steering wheel controls

Keep the original steering wheel remote control functions when you trade in your factory radio for an aftermarket radio.
Compare the adapter plugs shown with those in your vehicle and check whether they fit optically and technically.
Also check if one of the specified original factory radios is installed in your vehicle,

Remark:

analog

Connection: 10 pin / 6 pin / 28 pin Toyota connector
Connection: OEM steering wheel remote control > 3.5mm jack / loose cable
Connection: OEM antenna > DIN(m)
Connection: OEM reversing camera 24 pin > Cinch(m) yellow camera input
Connection: OEM camera adapter 16 pin > 24 pin
Connection: OEM USB > USB-A
Connection: OEM AUX > Cinch(m) red/white

Vehicles with Matsushita / Fujitsu Ten OEM device
Vehicles with/without reversing camera

Vehicles without 360° camera system

Vehicles with different pin assignments:

To avoid malfunction or failure of the vehicle or retrofit device, check the pin assignment by measuring before connecting.

+12V reverse signal alternative:
red 0.5mm 4-wire wiring harness > check rear trunk trim by measuring

Camera +6V power supply > check for correct assignment with OEM device before installation
Video (+/-) > check for correct assignment with OEM device before installation
USB > check for correct assignment with OEM device before installation
AUX > check for correct assignment with OEM device before installation

Dip switch settings for the retrofit device manufacturer (see BDA)

Suitable for the following vehicles:

Toyota Auris (E150) 03/2010 - 01/2013
Toyota Avensis (T27) 01/2012 - 06/2015
Toyota Corolla (E170) 04/2014 - 12/2016
Toyota Fortuner 2011 - 2015
Toyota Hilux (N25) 12/2011 - 08/2016
Toyota Hilux (AN1P) 11/2016 - 09/2020
Toyota Innova 2011 - 2015
Toyota Prius ZVW30/ZVW35 (XW3) 04/2012 - 02/2016
Toyota Prius+ (XW3/XW4) 06/2012 - 01/2015
Toyota RAV4 (XA3) 04/2009 - 05/2010
Toyota RAV4 (XA3) 05/2010 - 02/2013
Toyota RAV4 (XA3/XA4) 04/2013 - 01/2016
Toyota RAV4 (XA3/XA4) 01/2016 - 12/2018*
Toyota Verso (AR2) 04/2009 - 01/2013
Toyota Verso (AR2) 04/2013 - 06/2018
Toyota Verso-S (XP12) 03/2011 - 07/2014
Toyota Verso-S (XP12) 07/2014 - 12/2015
Toyota Yaris (XP13) 11/2011 - 08/2014
Toyota Yaris (XP13) 09/2014 - 03/2017
Toyota Yaris (XP13) 04/2017 - 08/2020

The following signals are given:

Re-imported vehicles or vehicles with different software may be incompatible in functions.

Steering wheel remote control

application Interface
Guarantee 2 years

Applicability

TOYOTA

	AURIS
	AURIS (_E15_) \| 10.2006-09.2012 1.33 Dual-VVTi (NRE150_, NRE150R) - 1329ccm, 99pk, 73kw - 1NR-FE
	AURIS (_E15_) \| 10.2006-09.2012 1.33 Dual-VVTi (NRE150_, NRE150R) - 1329ccm, 101pk, 74kw - 1NR-FE
	AURIS (_E15_) \| 10.2006-09.2012 1.4 (ZZE150_, ZZE150R) - 1398ccm, 97pk, 71kw - 4ZZ-FE
	AURIS (_E15_) \| 10.2006-09.2012 1.4 D-4D (NDE150_, NDE150R) - 1364ccm, 90pk, 66kw - 1ND-TV
	AURIS (_E15_) \| 10.2006-09.2012 1.5 (NZE151_, NZE151N) - 1497ccm, 110pk, 81kw - 1NZ-FE
	AURIS (_E15_) \| 10.2006-09.2012 1.5 4WD (NZE154_, NZE154R) - 1497ccm, 105pk, 77kw - 1NZ-FE
	AURIS (_E15_) \| 10.2006-09.2012 1.6 (ZRE151_, ZRE151R) - 1598ccm, 132pk, 97kw - 1ZR-FAE
	AURIS (_E15_) \| 10.2006-09.2012 1.6 (ZRE151_, ZRE151R) - 1598ccm, 124pk, 91kw - 1ZR-FE
	AURIS (_E15_) \| 10.2006-09.2012 1.8 (ZRE152) - 1798ccm, 136pk, 100kw - 2ZR-FE, 2ZR-FAE
	AURIS (_E15_) \| 10.2006-09.2012 1.8 (ZRE152_, ZRE152) - 1798ccm, 144pk, 106kw - 2ZR-FAE
	AURIS (_E15_) \| 10.2006-09.2012 1.8 (ZRE152_, ZRE152) - 1798ccm, 147pk, 108kw - 2ZR-FAE
	AURIS (_E15_) \| 10.2006-09.2012 1.8 4WD (ZRE154_, ZRE154N) - 1798ccm, 136pk, 100kw - 2ZR-FE
	AURIS (_E15_) \| 10.2006-09.2012 1.8 Hybrid (ZWE150_, ZWE150R) - 1798ccm, 136pk, 100kw - 2ZR-FXE
	AURIS (_E15_) \| 10.2006-09.2012 2.0 D-4D (ADE150_, ADE150R) - 1998ccm, 126pk, 93kw - 1AD-FTV
	AURIS (_E15_) \| 10.2006-09.2012 2.2 D (ADE157_, ADE151_, ADE151R, ADE157R) - 2231ccm, 177pk, 130kw - 2AD-FHV
	AURIS Hatchback
	AURIS Hatchback Van (_E15_) \| 03.2007-09.2012 1.4 D-4D (NDE150) - 1364ccm, 90pk, 66kw - 1ND-TV
	AVENSIS Estate
	AVENSIS Estate (_T27_) \| 11.2008-10.2018 1.6 D4-D (WWT270_) - 1598ccm, 112pk, 82kw - 1WW
	AVENSIS Estate (_T27_) \| 11.2008-10.2018 1.6 VVT-i (ZRT270_, ZRT270R) - 1598ccm, 132pk, 97kw - 1ZR-FAE
	AVENSIS Estate (_T27_) \| 11.2008-10.2018 1.8 VVT-i (ZRT271_, ZRT271R) - 1798ccm, 147pk, 108kw - 2ZR-FAE
	AVENSIS Estate (_T27_) \| 11.2008-10.2018 2.0 D-4D (ADT270_, ADT270R) - 1998ccm, 124pk, 91kw - 1AD-FTV
	AVENSIS Estate (_T27_) \| 11.2008-10.2018 2.0 D-4D (ADT270_, ADT270R) - 1998ccm, 126pk, 93kw - 1AD-FTV
	AVENSIS Estate (_T27_) \| 11.2008-10.2018 2.0 D-4D (WWT271_) - 1995ccm, 143pk, 105kw - 2WW
	AVENSIS Estate (_T27_) \| 11.2008-10.2018 2.0 VVT-i (ZRT272_, ZRT272R) - 1987ccm, 152pk, 112kw - 3ZR-FAE, 3ZR-FE
	AVENSIS Estate (_T27_) \| 11.2008-10.2018 2.2 D-4D (ADT271_, ADT271R) - 2231ccm, 177pk, 130kw - 2AD-FHV
	AVENSIS Estate (_T27_) \| 11.2008-10.2018 2.2 D-4D (ADT271_, ADT271R) - 2231ccm, 150pk, 110kw - 2AD-FTV, 2AD-FHV
	AVENSIS Saloon
	AVENSIS Saloon (_T27_) \| 11.2008-10.2018 1.6 D4-D (WWT270_) - 1598ccm, 112pk, 82kw - 1WW
	AVENSIS Saloon (_T27_) \| 11.2008-10.2018 1.6 VVT-i (ZRT270_, ZRT270R) - 1598ccm, 132pk, 97kw - 1ZR-FAE
	AVENSIS Saloon (_T27_) \| 11.2008-10.2018 1.8 VVT-i (ZRT271_, ZRT271R) - 1798ccm, 147pk, 108kw - 2ZR-FAE
	AVENSIS Saloon (_T27_) \| 11.2008-10.2018 2.0 D-4D (ADT270_, ADT270R) - 1998ccm, 124pk, 91kw - 1AD-FTV
	AVENSIS Saloon (_T27_) \| 11.2008-10.2018 2.0 D-4D (ADT270_, ADT270R) - 1998ccm, 126pk, 93kw - 1AD-FTV
	AVENSIS Saloon (_T27_) \| 11.2008-10.2018 2.0 D-4D (WWT271_) - 1995ccm, 143pk, 105kw - 2WW
	AVENSIS Saloon (_T27_) \| 11.2008-10.2018 2.0 VVT-i (ZRT272_, ZRT272R) - 1987ccm, 152pk, 112kw - 3ZR-FAE, 3ZR-FE
	AVENSIS Saloon (_T27_) \| 11.2008-10.2018 2.2 D-4D (ADT271_, ADT271R) - 2231ccm, 177pk, 130kw - 2AD-FHV
	AVENSIS Saloon (_T27_) \| 11.2008-10.2018 2.2 D-4D (ADT271_, ADT271R) - 2231ccm, 150pk, 110kw - 2AD-FTV, 2AD-FHV
	COROLLA Saloon
	COROLLA Saloon (_E18_, ZRE1_) \| 06.2013-08.2019 1.3 Dual-VVTi (NRE180_) - 1329ccm, 99pk, 73kw - 1NR-FE
	COROLLA Saloon (_E18_, ZRE1_) \| 06.2013-08.2019 1.4 D-4D (NDE180_, NDE170_) - 1364ccm, 90pk, 66kw - 1ND-TV
	COROLLA Saloon (_E18_, ZRE1_) \| 06.2013-08.2019 1.6 (ZRE171, ZRE181) - 1598ccm, 122pk, 90kw - 1ZR-FE, 1ZR-FAE
	COROLLA Saloon (_E18_, ZRE1_) \| 06.2013-08.2019 1.6 (ZRE181_) - 1598ccm, 132pk, 97kw - 1ZR-FAE
	COROLLA Saloon (_E18_, ZRE1_) \| 06.2013-08.2019 1.8 VVTi (ZRE172, ZRE182) - 1798ccm, 140pk, 103kw - 2ZR-FE
	HILUX VIGO
	HILUX VIGO VII Pickup (_N1_, _N2_, _N3_) \| 11.2004-09.2015 2.5 D 4WD (KUN25) - 2494ccm, 102pk, 75kw - 2KD-FTV
	HILUX VIGO VII Pickup (_N1_, _N2_, _N3_) \| 11.2004-09.2015 2.5 D-4D (KUN15) - 2494ccm, 88pk, 65kw - 2KD-FTV
	HILUX VIGO VII Pickup (_N1_, _N2_, _N3_) \| 11.2004-09.2015 2.5 D-4D (KUN15, KUN10) - 2494ccm, 102pk, 75kw - 2KD-FTV
	HILUX VIGO VII Pickup (_N1_, _N2_, _N3_) \| 11.2004-09.2015 2.5 D-4D (KUN15, KUN35) - 2494ccm, 144pk, 106kw - 2KD-FTV
	HILUX VIGO VII Pickup (_N1_, _N2_, _N3_) \| 11.2004-09.2015 2.5 D-4D (KUN15_, KUN15R) - 2494ccm, 120pk, 88kw - 2KD-FTV
	HILUX VIGO VII Pickup (_N1_, _N2_, _N3_) \| 11.2004-09.2015 2.5 D-4D 4WD (KUN25) - 2494ccm, 144pk, 106kw - 2KD-FTV
	HILUX VIGO VII Pickup (_N1_, _N2_, _N3_) \| 11.2004-09.2015 2.5 D-4D 4WD (KUN25_) - 2494ccm, 128pk, 94kw - 2KD-FTV
	HILUX VIGO VII Pickup (_N1_, _N2_, _N3_) \| 11.2004-09.2015 2.5 D-4D 4WD (KUN25_, KUN25R) - 2494ccm, 120pk, 88kw - 2KD-FTV
	HILUX VIGO VII Pickup (_N1_, _N2_, _N3_) \| 11.2004-09.2015 3.0 D-4D 4WD (KUN26) - 2982ccm, 163pk, 120kw - 1KD-FTV
	HILUX VIGO VII Pickup (_N1_, _N2_, _N3_) \| 11.2004-09.2015 3.0 D-4D 4WD (KUN26) - 2982ccm, 171pk, 126kw - 1KD-FTV
	HILUX VIGO VII Pickup (_N1_, _N2_, _N3_) \| 11.2004-09.2015 3.0 D-4D 4WD (KUN26) - 2982ccm, 197pk, 145kw - 1KD-FTV
	PRIUS
	PRIUS (_W3_) \| 06.2008-06.2016 1.8 Hybrid (ZVW30) - 1798ccm, 136pk, 100kw - 2ZR-FXE
	PRIUS (_W3_) \| 06.2008-06.2016 1.8 Plug-in Hybrid (ZVW30, ZVW35) - 1798ccm, 136pk, 100kw - 2ZR-FXE
	PRIUS PLUS
	PRIUS PLUS (_W4_) \| 05.2011-??? 1.8 Hybrid (ZVW40W, ZVW41W) - 1798ccm, 136pk, 100kw - 2ZR-FXE
	RAV 4
	RAV 4 III (_A3_) \| 11.2005-12.2013 2.0 (ZSA35_, ZSA35R) - 1987ccm, 158pk, 116kw - 3ZR-FAE
	RAV 4 III (_A3_) \| 11.2005-12.2013 2.0 4WD (ACA30_, ACA30R) - 1998ccm, 152pk, 112kw - 1AZ-FE
	RAV 4 III (_A3_) \| 11.2005-12.2013 2.0 4WD (ZSA30_, ZSA30R) - 1987ccm, 158pk, 116kw - 3ZR-FAE
	RAV 4 III (_A3_) \| 11.2005-12.2013 2.2 D (ALA35_) - 2231ccm, 150pk, 110kw - 2AD-FTV, 2AD-FHV
	RAV 4 III (_A3_) \| 11.2005-12.2013 2.2 D 4WD (ALA30) - 2231ccm, 133pk, 98kw - 2AD-FTV
	RAV 4 III (_A3_) \| 11.2005-12.2013 2.2 D 4WD (ALA30_, ALA30R) - 2231ccm, 177pk, 130kw - 2AD-FHV
	RAV 4 III (_A3_) \| 11.2005-12.2013 2.2 D 4WD (ALA30_, ALA30R) - 2231ccm, 136pk, 100kw - 2AD-FTV
	RAV 4 III (_A3_) \| 11.2005-12.2013 2.2 D 4WD (ALA30_, ALA30R) - 2231ccm, 150pk, 110kw - 2AD-FTV, 2AD-FHV
	RAV 4 III (_A3_) \| 11.2005-12.2013 2.4 (ACA36, ACA38) - 2362ccm, 170pk, 125kw - 2AZ-FE
	RAV 4 III (_A3_) \| 11.2005-12.2013 2.4 4WD (ACA31, ACA33) - 2362ccm, 170pk, 125kw - 2AZ-FE
	RAV 4 IV (_A4_) \| 12.2012-09.2019 2.0 (ZSA42) - 1987ccm, 143pk, 105kw - 3ZR-FE
	RAV 4 IV (_A4_) \| 12.2012-09.2019 2.0 (ZSA42) - 1987ccm, 146pk, 107kw - 3ZR-FE
	RAV 4 IV (_A4_) \| 12.2012-09.2019 2.0 4WD (ZSA44) - 1987ccm, 146pk, 107kw - 3ZR-FE
	RAV 4 IV (_A4_) \| 12.2012-09.2019 2.0 4WD (ZSA44_) - 1987ccm, 151pk, 112kw - 3ZR-FAE
	RAV 4 IV (_A4_) \| 12.2012-09.2019 2.0 4WD (ZSA44_, ZSA44R) - 1987ccm, 151pk, 111kw - 3ZR-FAE
	RAV 4 IV (_A4_) \| 12.2012-09.2019 2.0 D (ALA40_, ALA40R) - 1998ccm, 124pk, 91kw - 1AD-FTV
	RAV 4 IV (_A4_) \| 12.2012-09.2019 2.0 D (WWA42_) - 1995ccm, 143pk, 105kw - 2WW
	RAV 4 IV (_A4_) \| 12.2012-09.2019 2.0 D 4WD (ALA41_) - 1998ccm, 124pk, 91kw - 1AD-FTV
	RAV 4 IV (_A4_) \| 12.2012-09.2019 2.2 D 4WD (ALA49) - 2231ccm, 150pk, 110kw - 2AD-FTV, 2AD-FHV
	RAV 4 IV (_A4_) \| 12.2012-09.2019 2.5 (ASA42) - 2494ccm, 180pk, 132kw - 2AR-FE
	RAV 4 IV (_A4_) \| 12.2012-09.2019 2.5 4WD (ASA44) - 2494ccm, 180pk, 132kw - 2AR-FE
	RAV 4 IV (_A4_) \| 12.2012-09.2019 2.5 Hybrid (AVA42_) - 2494ccm, 197pk, 145kw - 2AR-FXE
	RAV 4 IV (_A4_) \| 12.2012-09.2019 2.5 Hybrid 4WD (AVA44, AVA44_) - 2494ccm, 197pk, 145kw - 2AR-FXE
	RAV 4 IV VAN (_A4_) \| 12.2012-11.2018 2.0 VVTi 4WD (ZSA44) - 1987ccm, 152pk, 112kw - 3ZR-FAE
	VERSO
	VERSO (_R2_) \| 04.2009-08.2018 1.6 (ZGR20) - 1598ccm, 110pk, 81kw - 1ZR-FAE
	VERSO (_R2_) \| 04.2009-08.2018 1.6 (ZGR20_, ZGR20R) - 1598ccm, 132pk, 97kw - 1ZR-FAE
	VERSO (_R2_) \| 04.2009-08.2018 1.6 D4-D (WAR20_) - 1598ccm, 112pk, 82kw - 1WW
	VERSO (_R2_) \| 04.2009-08.2018 1.8 (ZGR21_, ZGR21R) - 1798ccm, 147pk, 108kw - 2ZR-FAE
	VERSO (_R2_) \| 04.2009-08.2018 2.0 D-4D (AUR20_, AUR20R) - 1998ccm, 124pk, 91kw - 1AD-FTV
	VERSO (_R2_) \| 04.2009-08.2018 2.0 D-4D (AUR20_, AUR20R) - 1998ccm, 126pk, 93kw - 1AD-FTV
	VERSO (_R2_) \| 04.2009-08.2018 2.2 D-4D (AUR21) - 2231ccm, 136pk, 100kw - 2AD-FHV
	VERSO (_R2_) \| 04.2009-08.2018 2.2 D-4D (AUR21_, AUR21R) - 2231ccm, 150pk, 110kw - 2AD-FHV
	VERSO (_R2_) \| 04.2009-08.2018 2.2 D-CAT (AUR21_, AUR21R) - 2231ccm, 177pk, 130kw - 2AD-FHV
	VERSO S
	VERSO S (_P12_) \| 11.2010-10.2016 1.33 (NSP120_) - 1329ccm, 99pk, 73kw - 1NR-FE
	VERSO S (_P12_) \| 11.2010-10.2016 1.4 D4-D (NLP121_, NLP121R) - 1364ccm, 90pk, 66kw - 1ND-TV
	YARIS Hatchback
	YARIS Hatchback Van (_P13_) \| 10.2012-06.2020 1.0 VVTi (KSP130) - 998ccm, 69pk, 51kw - 1KR-FE
	YARIS Hatchback Van (_P13_) \| 10.2012-06.2020 1.0 VVTi (KSP130) - 998ccm, 72pk, 53kw - 1KR-FE
	YARIS Hatchback Van (_P13_) \| 10.2012-06.2020 1.3 VVTi (NSP130) - 1329ccm, 99pk, 73kw - 1NR-FE
	YARIS Hatchback Van (_P13_) \| 10.2012-06.2020 1.4 D4d (NLP130) - 1364ccm, 90pk, 66kw - 1ND-TV
	YARIS Hatchback Van (_P13_) \| 10.2012-06.2020 1.5 Hybrid (NHP130) - 1497ccm, 101pk, 74kw - 1NZ-FXE
	YARIS/VITZ
	YARIS/VITZ (_P13_) \| 12.2010-06.2020 1.0 (KSP130) - 998ccm, 72pk, 53kw - 1KR-FE
	YARIS/VITZ (_P13_) \| 12.2010-06.2020 1.0 (KSP130_, KSP130) - 998ccm, 69pk, 51kw - 1KR-FE
	YARIS/VITZ (_P13_) \| 12.2010-06.2020 1.3 (NSP130_, NSP130) - 1329ccm, 95pk, 70kw - 1NR-FE
	YARIS/VITZ (_P13_) \| 12.2010-06.2020 1.3 (NSP130_, NSP130) - 1329ccm, 99pk, 73kw - 1NR-FE, 1NR-FKE
	YARIS/VITZ (_P13_) \| 12.2010-06.2020 1.4 D (NLP130_, NLP130) - 1364ccm, 90pk, 66kw - 1ND-TV
	YARIS/VITZ (_P13_) \| 12.2010-06.2020 1.5 (NSP131_) - 1496ccm, 112pk, 82kw - 2NR-FKE
	YARIS/VITZ (_P13_) \| 12.2010-06.2020 1.5 Hybrid (NHP130_) - 1497ccm, 101pk, 74kw - 1NZ-FXE
	YARIS/VITZ (_P13_) \| 12.2010-06.2020 1.5 Hybrid (NHP130_, NHP130) - 1497ccm, 101pk, 74kw - 1NZ-FXE
	YARIS/VITZ (_P13_) \| 12.2010-06.2020 1.8 GRMN (NSP131_) - 1798ccm, 212pk, 156kw - 2ZR-FE (SC)
