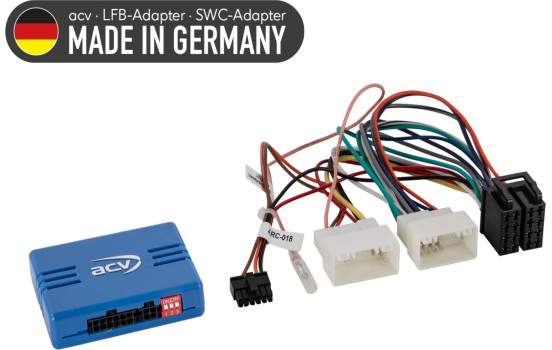

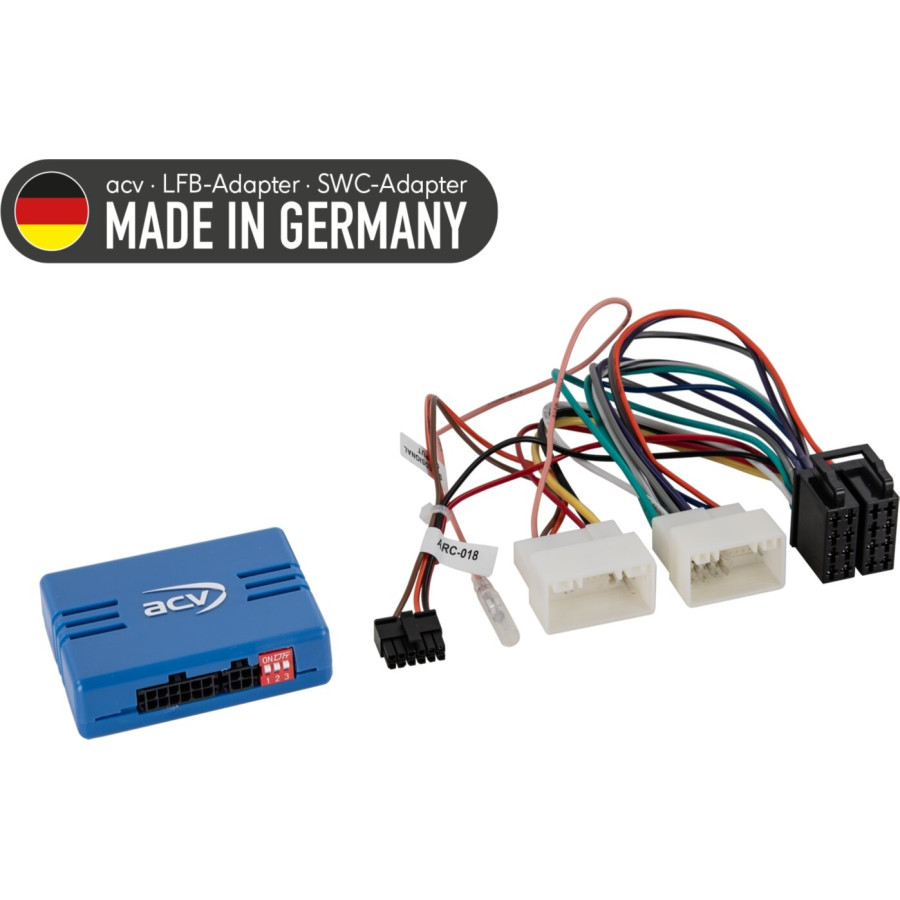

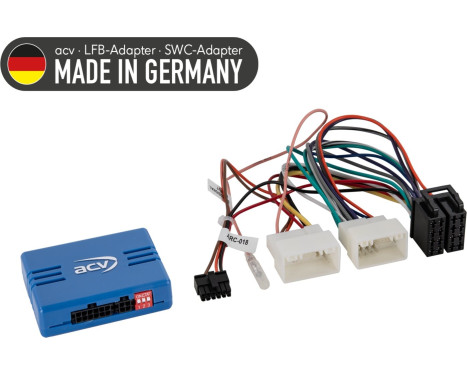

SWIHyundai/Kia various vehicles 24pin/18pin analog (42ski004)

Hyundai/Kia Steering Wheel Remote Control Adapter

Retain the original functions of your steering wheel remote control when replacing the factory radio with a retrofit radio.

Depending on the vehicle's equipment and the range of functions and software of the retrofit device, individual control functions may be omitted or replaced by other functions.

Compare the adapter plugs shown with those in your vehicle and ensure they match visually and technically.

Also check to see if one of the specified original factory radios was installed in your vehicle.

Before final installation, check that the vehicle functions, vehicle settings and steering wheel remote control are working properly.

Remark:

analog

Connection: 24 pin / 18 pin Hyundai connector

For vehicles of model year > article: 42a-1180-00c with ISO/Mini ISO and 24pin/18pin wiring harness

Vehicles without OEM sound system
Vehicles without OEM navigation

Vehicles with different pin assignments and vehicles with OEM navigation:

To avoid malfunction or failure of the vehicle or aftermarket device, check the pin assignment before connecting.

Diagnostic LED:
blue constant > Interface active +12V power supply Ignition current present
red > Steering wheel remote control function recognized

Suitable for the following vehicles:

Hyundai
Hyundai Azera 2011 - 2017
Hyundai Elantra 2011 - 2015
Hyundai H350 06/2015 -12/2019
Hyundai i10 (IA) 11/2013 - 12/2016
Hyundai i10 (IA) 01/2017 - 12/2019*
Hyundai i20 (GB) 12/2014 - 06/2018*
Hyundai i20 (GB) 07/2018 -09/2020*
Hyundai i30 (GD/GDH) 03/2012 - 05/2015
Hyundai i30 (GD/GDH) 05/2015 - 05/2017
Hyundai i40 (VF) 09/2011 - 05/2015
Hyundai i40 (VF) 05/2015 - 08/2018*
Hyundai i40 (VF) 10/2018 - 07/2019*
Hyundai i45 2009 - 2014
Hyundai i800 2007 - 2021*
Hyundai ix35 (EL) 03/2010 - 09/2013
Hyundai ix35 (EL) 09/2013 - 07/2015
Hyundai ix45 2013 - 2018*
Hyundai Santa Fe (DM) 10/2012 - 11/2015
Hyundai Santa-Fe (DM) 12/2015 - 08/2018*
Hyundai Sonata (YF) 2009 - 2014
Hyundai Tucson (TL) 04/2010 - 06/2015
Hyundai Tucson (TL) 07/2015 - 07/2018**
Hyundai Tucson (TL) 07/2018 - 12/2020**

Kia
Kia Cee'd (JD) 06/2012 - 09/2015
Kia Forte 2012 - 2016
Kia Optima (TF) 06/2012 - 10/2013
Kia Optima (TF) 10/2013 - 10/2015
Kia Picanto (TA) 09/2011 - 04/2015
Kia Picanto (TA) 04/2015 - 03/2017
Kia Pro-Cee'd (JD) 07/2013 - 09/2015
Kia Rio (UB) 09/2011 - 01/2015
Kia Soul (AM) 09/2011 - 03/2014
Kia Soul (PS) 03/2014 - 11/2016
Kia Sorento (XM) 10/2012 - 03/2015
Kia Sportage (SL) 08/2010 - 03/2014
Kia Sportage (SL) 03/2014 - 01/2016

The following signals are given:

Re-imported vehicles or vehicles with different software may be incompatible in terms of functions.

Steering wheel remote control

*Vehicles 2016> without OEM navigation
**Vehicles with Continental OEM navigation

Connection cable for the following radio manufacturers:

Multilead various devices: 42arc100

Alpine 3.5mm jack connection: 42arc101
Blaupunkt 2010> 3.5mm jack connection: 42arc107
Blaupunkt 2010> Key1 / Key2 / (GND) connection: 42arc000
China HU Key1 / Key2 / (GND) connector: 42arc000
Clarion 3.5mm jack connection: 42arc104
Digital Dynamics single cable connection: 42arc108
ESX Key1/Key2 connector: 42arc000
JVC 3.5mm jack connection: 42arc104
JVC single cable connection: 42arc105
Kenwood single cable connection: 42arc105
Kenwood 2017> 3.5mm jack connection: 42arc107
Kenwood 2020> Key1 / Key2 / GND connection: 42arc000
Pioneer 3.5 mm jack: 42arc107
Pioneer AVH / DMH / SPH 2021/2022> 3.5mm jack connection: 42arc1072
Snooper Key1 / Key2 connection: 42arc000
Sony 3.5mm jack: 42arc107
XZent one-cable connection: 42arc108
Zenec single cable connection: 42arc108

Suitable for:
Hyundai Azera 2011-2017
Hyundai Elentra 2011-2015
Hyundai Genesis 2010-2013
Hyundai i10 2009-2020
Hyundai i20 2009-2012
Hyundai i30 2009-2012
Hyundai i40 2011-2020
Hyundai H1 2010-2020
Hyundai ix20 2010-2020
Hyundai ix35 2010-2020
Hyundai Santa Fe 2012-2020
Hyundai Sonata 2009-2020
Hyundai Tucson 2010-2020
Kia Carens 2010-2013
Kia Carnival 2005-2011
Kia Cee'd 2009-2020
Kia Optima 2012-2020
Kia Picanto 2011-2020
Kia Rio 2011-2020
Kia Sorento 2009-2020
Kia Soul 2009-2011
Kia Sportage 2010-2020
Kia Venga 2010-2020
Kia Pro Cee'd 2009-2015

---

Guarantee

2 years
