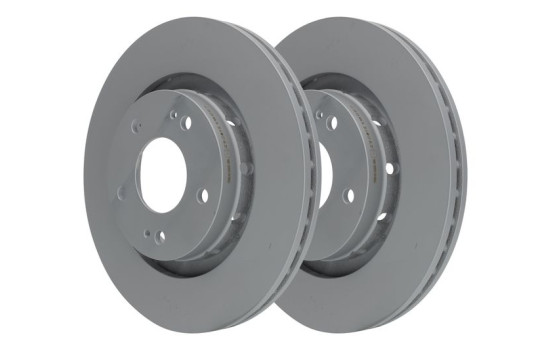

Brake Disc 24.0124-0215.1 ATE
Product number: 0384920
Manufacturer number: 24.0124-0215.1
EAN: 4006633328050
-
Free 30 days exchanges
-
Quality car parts
-
EU Delivery: 2-3 days
-
Ask our experts for advice
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
Please your vehicle
-
Specifications
Application: brake disc

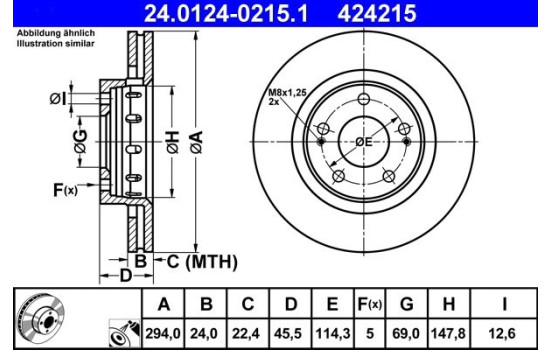

Outer diameter [mm] 294,0 Brake Disc Type Vented Surface Coated Number of Holes 5 Montage Front Brake pads Exclusive Inner diameter [mm] 147,8 Bolt Hole Circle Ø [mm] 114,3 Centering Diameter [mm] 69,0 Bore Ø [mm] 12,6 Inspection Tag E1 90R-02C0118 / 0063 MAPP code available Guarantee 2 years Height [mm] 45,5 Brake disc thickness (mm) 24,0 Minimum thickness (mm) 22,4 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 17433 A.B.S. 09.A738.11 AP 25179 E AP 25179 V AP 25179 X ASAM 75696 ASHUKI C652-25 ATE 24.0124-0215.1 (this product) BELACO BDS1279 BLUE PRINT ADC44367 BLUE PRINT ADC44392 BORG & BECK BBD4481 BOSCH 0 986 479 372 BRAXIS AE0301 BRECO BV 8789 BRECO BS 8789 BREMBO 09.A738.11 BREMBO 09.A738.14 BREMBO 09.A738.1X BREMSI CD7642V CAR HPD 1313 CAR 142.1313 CHAMPION 562528CH CIFAM 800-939C COMLINE AND6355 COMLINE ADC0370V DELPHI BG4038C DELPHI BG4038 DENCKERMANN B130331 DON PCD10792 Dr!ve+ DP1010.11.0425 E.T.F. 19-2933 EUROBRAKE 5815203043 EUROBRAKE 5815313043 FEBI BILSTEIN 28440 FERODO DDF1642 FERODO DDF1642C FREMAX BD-5924 FRIGAIR DC03.102 FTE 9072260 FTE BS5448 FTE BS5448B FTE 9082195 GALFER B1.G224-0215.1 GIRLING 6061741 HELLA 8DD 355 111-571 HELLA PAGID 8DD 355 111-571 HERTH+BUSS JAKOPARTS J3305063 ICER 78BD5924-2 JP GROUP 4163101400 JURATEK MIT130 JURID 562528JC KAMOKA 1031014 KAVO PARTS BR-5762-C KEY PARTS KBD4481 KLAXCAR FRANCE 25410z KRAFT AUTOMOTIVE 6044226 LORO 231-03-087 LPR M1012VR MAGNETI MARELLI 360406077101 MAGNETI MARELLI 361302040574 MAGNETI MARELLI 360406176102 Manufacturer Manufacturer number Price MAGNETI MARELLI 360406077100 MALÒ 1110312 MAPCO 25242C MAPCO 25242 MASTER-SPORT 24012402151PR-PCS-MSP MASTER-SPORT 24012402151-SET-MS MASTER-SPORT 24012402151-SET-MSP MASTER-SPORT 24012402151-PCS-MSP MASTER-SPORT 24012402151PR-PCS-MS MASTER-SPORT 24012402151-PCS-MS MAXGEAR 19-1057MAX MAXGEAR 19-1057SPORT MAXGEAR 19-1057 MAXTECH 855099 METELLI 23-0939C METZGER 6110375 MEYLE 32-15 521 0025/PD MEYLE 32-15 521 0025 MINTEX MDC1385 MOTAQUIP LVBD1229 NATIONAL NBD978 NIPPARTS J3305063 NK 313043 NK 203043 OPTIMAL BS-8394 OPTIMAL BS-8394HC Omnicraft 2134533 PILENGA V483 PROTECHNIC PRD2478 QUARO QD7689HC QUARO QD7689 QUINTON HAZELL BDC5448 R BRAKE 78RBD25924 RAICAM RD00359 ROTINGER RT 4519HP-GL T3 ROTINGER RT 4519HP-GL T6 ROTINGER RT 4519-GL T9 ROTINGER RT 4519HP ROTINGER RT 4519HP-GL ROTINGER RT 4519HP-GL T5 ROTINGER RT 4519HP-GL T9 ROTINGER RT 4519-GL T3 ROTINGER RT 4519-GL ROTINGER RT 4519-GL T5 ROTINGER RT 4519-GL T6 ROTINGER RT 4519 SASIC 6100012 SKF VKBD 80127 V2 STELLOX 6020-3043VK-SX STELLOX 6020-3043V-SX SWAG 80 92 8440 TEXTAR 92135203 TOPRAN 722 836 TRISCAN 8120 42130C TRUSTING DF366 TRW DF6174 VAICO V22-80008 WAGNER WGR1642-1 ZIMMERMANN 440.3122.52 ZIMMERMANN 440.3122.20 sbs 1815313043 sbs 1815203043 -
Applicability
CITROEN C-CROSSER C-CROSSER (VU_, VV_) | 02.2007-12.2012 2.2 HDi - 2179ccm, 156pk, 115kw - 4HN (DW12MTED4), 4HK (DW12ME5) C-CROSSER (VU_, VV_) | 02.2007-12.2012 2.4 16V - 2360ccm, 170pk, 125kw - SFZ (4B12 MMC) C-CROSSER ENTERPRISE C-CROSSER ENTERPRISE (VU_, VV_) | 01.2009-??? 2.2 HDi - 2179ccm, 156pk, 115kw - 4HN (DW12MTED4) C-CROSSER ENTERPRISE (VU_, VV_) | 01.2009-??? 2.4 16V - 2360ccm, 170pk, 125kw - 4B12 C-CROSSER Van C-CROSSER Van (VU_) | 06.2007-12.2012 2.2 HDi (VU4HNH) - 2179ccm, 156pk, 115kw - 4HN (DW12MTED4) MITSUBISHI GALANT / GALANT / ASPIRE Mk VI (EA_) | 09.1996-10.2004 2.5 V6 24V (EC5A) - 2498ccm, 280pk, 206kw - 6A13TT LANCER VIII LANCER VIII (CY_A, CZ_A) | 03.2007-12.2015 2.0 i Ralliart 4WD (CY4A) - 1998ccm, 241pk, 177kw - 4B11-T/C LANCER VIII Sportback (CX_A) | 06.2008-??? 2.0 Ralliart 4WD (CX4A) - 1998ccm, 241pk, 177kw - 4B11-T/C OUTLANDER I OUTLANDER I (CU_W) | 03.2001-09.2007 2.0 (CU2W) - 1997ccm, 136pk, 100kw - 4G63 (DOHC 16V) OUTLANDER I (CU_W) | 03.2001-09.2007 2.0 4WD (CU2W) - 1997ccm, 136pk, 100kw - 4G63 (DOHC 16V) OUTLANDER I (CU_W) | 03.2001-09.2007 2.0 Turbo 4WD (CU2W) - 1997ccm, 201pk, 148kw - 4G63-T (DOHC 16V) OUTLANDER I (CU_W) | 03.2001-09.2007 2.0 Turbo-R 4WD (CU2W) - 1997ccm, 241pk, 177kw - 4G63 Turbo OUTLANDER I (CU_W) | 03.2001-09.2007 2.4 4WD (CU4W) - 2351ccm, 139pk, 102kw - 4G64 (16V) OUTLANDER I (CU_W) | 03.2001-09.2007 2.4 4WD (CU5W) - 2378ccm, 160pk, 118kw - 4G69 OUTLANDER I (CU_W) | 03.2001-09.2007 2.4 4WD (CU5W) - 2378ccm, 162pk, 119kw - 4G69 OUTLANDER I (CU_W) | 03.2001-09.2007 2.4 HDD Mivec (CU5W) - 2378ccm, 160pk, 118kw - 4G69 OUTLANDER II OUTLANDER II (CW_W) | 11.2006-11.2012 2.0 (CW4W) - 1998ccm, 147pk, 108kw - 4B11 OUTLANDER II (CW_W) | 11.2006-11.2012 2.0 4WD - 1998ccm, 147pk, 108kw - 4B11 OUTLANDER II (CW_W) | 11.2006-11.2012 2.0 DI-D (CW8W) - 1968ccm, 140pk, 103kw - BSY OUTLANDER II (CW_W) | 11.2006-11.2012 2.2 DI-D - 2268ccm, 177pk, 130kw - 4N14 OUTLANDER II (CW_W) | 11.2006-11.2012 2.2 DI-D 4WD - 2179ccm, 156pk, 115kw - 4HK, 4HN OUTLANDER II (CW_W) | 11.2006-11.2012 2.2 DI-D 4WD - 2268ccm, 140pk, 103kw - 4N14 OUTLANDER II (CW_W) | 11.2006-11.2012 2.2 DI-D 4WD - 2268ccm, 177pk, 130kw - 4N14 OUTLANDER II (CW_W) | 11.2006-11.2012 2.4 (CW5W) - 2360ccm, 170pk, 125kw - 4B12 OUTLANDER II (CW_W) | 11.2006-11.2012 2.4 4WD (CW5W) - 2360ccm, 170pk, 125kw - 4B12 OUTLANDER II (CW_W) | 11.2006-11.2012 2.4 Flex 4WD - 2360ccm, 170pk, 125kw - 4B12 OUTLANDER II Van (CW_W) | 12.2006-12.2012 Di-D 4WD (CW1W) - 2268ccm, 177pk, 130kw - 4N14 OUTLANDER II Van (CW_W) | 12.2006-12.2012 Di-D 4WD (CW8W) - 1968ccm, 140pk, 103kw - BSY OUTLANDER III OUTLANDER III (GG_W, GF_W, ZJ, ZL, ZK) | 08.2012-12.2021 2.0 (GF2W) - 1998ccm, 146pk, 107kw - 4B11 OUTLANDER III (GG_W, GF_W, ZJ, ZL, ZK) | 08.2012-12.2021 2.0 (GF7W) - 1998ccm, 150pk, 110kw - 4J11 OUTLANDER III (GG_W, GF_W, ZJ, ZL, ZK) | 08.2012-12.2021 2.0 4WD (GF7W) - 1998ccm, 150pk, 110kw - 4J11 OUTLANDER III (GG_W, GF_W, ZJ, ZL, ZK) | 08.2012-12.2021 2.0 4WD (GF7W, GF2W) - 1998ccm, 146pk, 107kw - 4B11 OUTLANDER III (GG_W, GF_W, ZJ, ZL, ZK) | 08.2012-12.2021 2.0 Hybrid 4WD (GG2W) - 1998ccm, 200pk, 147kw - 4B11, S61, Y61 OUTLANDER III (GG_W, GF_W, ZJ, ZL, ZK) | 08.2012-12.2021 2.2 DI-D (GF6W) - 2268ccm, 150pk, 110kw - 4N14 OUTLANDER III (GG_W, GF_W, ZJ, ZL, ZK) | 08.2012-12.2021 2.2 DI-D 4WD (GF6W) - 2268ccm, 150pk, 110kw - 4N14 OUTLANDER III (GG_W, GF_W, ZJ, ZL, ZK) | 08.2012-12.2021 Plug-in Hybrid (GG2W) - 1998ccm, 200pk, 147kw - 4B11, S61, Y61 OUTLANDER III Van (GF_W, GG_W) | 04.2013-??? Di-D 4WD (GF6W) - 2268ccm, 150pk, 110kw - 4N14 PEUGEOT 4007 4007 (VU_, VV_) | 02.2007-03.2013 2.2 HDi - 2179ccm, 156pk, 115kw - 4HN (DW12MTED4), 4HK (DW12ME5) 4007 (VU_, VV_) | 02.2007-03.2013 2.4 16V - 2360ccm, 170pk, 125kw - SFY (4B12-MMC), SFZ (4B12-MMC) -
Original part numbers
4249 58 CITROËN 4249 59 CITROËN 4615A006 MITSUBISHI MR128659 MITSUBISHI MR205215 MITSUBISHI 16 063 757 80 PEUGEOT 4249 58 PEUGEOT 4249 F3 PEUGEOT 16 063 757 80 CITROËN 16 114 298 80 CITROËN 16 114 298 80 PEUGEOT 4249 59 PEUGEOT -
Manufacturer
When professionals think about braking parts, ATE is often called ATE. This is because ATE - part of the Continental group - invests a lot of energy in the development of its products and is therefore the first choice for garages who want to offer their customers the best possible quality. Brake discs and brake pads of ATE are of exceptional quality. ATE brake parts are of similar quality to the original, but often exceed the specifications of the original brake parts.
For example, ATE has 150 different types of brake pad assemblies. This enables them to guarantee the right amount of pedal feel, braking power, comfort and durability for every application. In comparison; ATE's competitors often use only 4 or 5 different compounds for their entire range. As a result, the brake parts are never completely tuned to the car for which they will be used.
ATE is one of the first suppliers of ceramic brake pads. These brake pads with the addition of Ceramic have as much brake force as normal brake pads, but leave virtually no brake material. This will keep your wheels and your brake system clean for a long time. In addition, they last longer than regular brake pads.
-
