Brake Disc SPORT BRAKE DISC COAT Z 250.1347.52 Zimmermann
Product number: 0846704
Manufacturer number: 250.1347.52
EAN: 4250238749240
-
Free 30 days exchanges
-
Quality car parts
-
EU Delivery: 2-3 days
-
Ask our experts for advice
Customer service: +31 85 070 52 25
Ask your question at our product specialists.
Questions and answers.
Fit guarantee, show parts suitable for your vehicle.
Please your vehicle
-
Specifications
Give your brake system an upgrade with the Zimmerman Sport Z brake discs.
These brake discs are equipped with perforated ventilation holes. This design ensures better water / dirt drainage and prevents so-called 'brake fading'. These brake discs are also very suitable in colder and wet conditions.
Grooved design:
- Perforated for better removal of gases
- Rust-resistant coating
Key benefits:
- German quality
- Less? Brake fading?
- Better braking performance
- Perfect fit
Note: most Zimmermann brake discs can only be ordered per 2 and are the same on both sides. The brake discs that are sold per piece differ on the left and right.

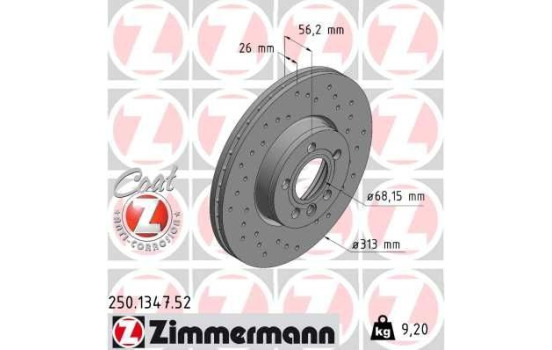

Outer diameter [mm] 313 Fitting Position Front Axle Rim Hole Number 5 Brake Disc Type Internal ventilation Surface Coated Brake pads Exclusive Bolt Hole Circle Ø [mm] 112 Brake Disc Type Perforated Centering Diameter [mm] 68 Hole Arrangement / Number 6/5 Machining High-carbon Inspection Tag ECE R90 APPROVED Guarantee 2 years Height [mm] 56 Brake disc thickness (mm) 26 Minimum thickness (mm) 22 Weight [kg] 9,20 Similar products of other manufacturers
Manufacturer Manufacturer number Price A.B.S. 17114 ABE C3G061ABE AP 24969 AP 24969 V ASAM 102113 ASHIKA 60-00-0315C BELACO BDS1385HC BLUE PRINT ADV1843130 BORG & BECK BBD5121 BOSCH 0 986 478 296 BRECO BS 8588 BRECO BV 8588 BREMBO 09.9797.10 BREMBO 09.9797.11 BREMSI CD7160V CHAMPION 562626CH DJ PARTS BD2239 DON PCD12102 Dr!ve+ DP1010.11.1221 EUROBRAKE 5815204783 EUROBRAKE 5815314783 FEBI BILSTEIN 21941 FERODO DDF1160C FTE 9071125 GIRLING 6043105 HELLA 8DD 355 127-711 HELLA PAGID 8DD 355 127-711 JAPANPARTS DI0315JM JAPANPARTS DI-0315C JAPKO 600315C JURID 562626JC JURID 562626JC-1 KRAFT AUTOMOTIVE 6040295 MAGNETI MARELLI 361302040490 MAGNETI MARELLI 360406050900 Manufacturer Manufacturer number Price MASTER-SPORT 24012601191-SET-MSP MASTER-SPORT 24012601191-PCS-MSP MASTER-SPORT 24012601191-SET-MS MASTER-SPORT 24012601191-PCS-MS MAXGEAR 19-1024SPORT MAXGEAR 19-1024 MAXTECH 871140 METZGER 6110379 MEYLE 115 521 0040/PD MEYLE 115 521 0040 MINTEX MDC1552 NK 204783 NK 314783 OPEN PARTS BDA2302.20 OPEN PARTS BDR2302.20 OPTIMAL BS-8122HC Omnicraft 2134578 PAGID 50348NHC QUARO QD3732 RAICAM RD00910 ROTINGER RT 4520-GL T5 ROTINGER RT 4520-GL T9 ROTINGER RT 4520-GL T6 ROTINGER RT 4520-GL ROTINGER RT 4520-GL T3 ROTINGER RT 4520 STELLOX 6020-4783V-SX SWAG 30 92 1941 TEXTAR 92109905 TRW DF4310S VALEO 186800 VALEO 672947 ZIMMERMANN 250.1347.20 ZIMMERMANN 250.1347.52 (this product) -
Applicability
FORD GALAXY I GALAXY I (WGR) | 03.1995-05.2006 2.8 V6 - 2792ccm, 204pk, 150kw - AYL SEAT ALHAMBRA ALHAMBRA (7V8, 7V9) | 04.1996-03.2010 1.8 T 20V - 1781ccm, 150pk, 110kw - AJH, AWC ALHAMBRA (7V8, 7V9) | 04.1996-03.2010 1.9 TDI - 1896ccm, 90pk, 66kw - 1Z, AHU, ANU ALHAMBRA (7V8, 7V9) | 04.1996-03.2010 1.9 TDI - 1896ccm, 131pk, 96kw - ASZ ALHAMBRA (7V8, 7V9) | 04.1996-03.2010 1.9 TDI - 1896ccm, 115pk, 85kw - AUY, BVK ALHAMBRA (7V8, 7V9) | 04.1996-03.2010 1.9 TDI - 1896ccm, 150pk, 110kw - BTB ALHAMBRA (7V8, 7V9) | 04.1996-03.2010 1.9 TDI 4motion - 1896ccm, 115pk, 85kw - AUY, BVK ALHAMBRA (7V8, 7V9) | 04.1996-03.2010 2.0 i - 1984ccm, 115pk, 85kw - ADY, ATM ALHAMBRA (7V8, 7V9) | 04.1996-03.2010 2.0 TDI - 1968ccm, 140pk, 103kw - BRT ALHAMBRA (7V8, 7V9) | 04.1996-03.2010 2.8 V6 - 2792ccm, 204pk, 150kw - AUE, AYL ALHAMBRA (7V8, 7V9) | 04.1996-03.2010 2.8 V6 4motion - 2792ccm, 204pk, 150kw - AUE, AYL VOLKSWAGEN SHARAN SHARAN (7M8, 7M9, 7M6) | 09.1995-03.2010 1.8 T 20V - 1781ccm, 150pk, 110kw - AJH, AWC SHARAN (7M8, 7M9, 7M6) | 09.1995-03.2010 1.9 TDI - 1896ccm, 90pk, 66kw - 1Z, AHU, ANU SHARAN (7M8, 7M9, 7M6) | 09.1995-03.2010 1.9 TDI - 1896ccm, 130pk, 96kw - ASZ SHARAN (7M8, 7M9, 7M6) | 09.1995-03.2010 1.9 TDI - 1896ccm, 115pk, 85kw - AUY, BVK SHARAN (7M8, 7M9, 7M6) | 09.1995-03.2010 1.9 TDI - 1896ccm, 150pk, 110kw - BTB SHARAN (7M8, 7M9, 7M6) | 09.1995-03.2010 1.9 TDI 4motion - 1896ccm, 115pk, 85kw - AUY, BVK SHARAN (7M8, 7M9, 7M6) | 09.1995-03.2010 2.0 - 1984ccm, 115pk, 85kw - ADY, ATM SHARAN (7M8, 7M9, 7M6) | 09.1995-03.2010 2.0 LPG - 1984ccm, 115pk, 85kw - ATM SHARAN (7M8, 7M9, 7M6) | 09.1995-03.2010 2.0 TDI - 1968ccm, 140pk, 103kw - BRT SHARAN (7M8, 7M9, 7M6) | 09.1995-03.2010 2.0 TDI - 1968ccm, 136pk, 100kw - BVH SHARAN (7M8, 7M9, 7M6) | 09.1995-03.2010 2.8 V6 24V - 2792ccm, 204pk, 150kw - AYL SHARAN (7M8, 7M9, 7M6) | 09.1995-03.2010 2.8 V6 24V 4motion - 2792ccm, 204pk, 150kw - AYL TRANSPORTER / TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 1.9 D - 1896ccm, 60pk, 44kw - 1X TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 1.9 TD - 1896ccm, 68pk, 50kw - ABL TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.0 - 1968ccm, 84pk, 62kw - AAC TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.4 D - 2370ccm, 78pk, 57kw - AAB TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.4 D - 2370ccm, 75pk, 55kw - AJA TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.4 D Syncro - 2370ccm, 78pk, 57kw - AAB TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.5 - 2461ccm, 110pk, 81kw - AAF, ACU, AEN, AEU TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.5 - 2461ccm, 115pk, 85kw - AET, APL, AVT TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.5 Syncro - 2461ccm, 110pk, 81kw - AAF, ACU, AEU TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.5 Syncro - 2461ccm, 115pk, 85kw - AET, APL, AVT TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.5 TDI - 2461ccm, 102pk, 75kw - ACV, AUF, AYC TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.5 TDI - 2461ccm, 151pk, 111kw - AHY, AXG TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.5 TDI - 2461ccm, 88pk, 65kw - AJT, AYY TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.5 TDI Syncro - 2461ccm, 102pk, 75kw - ACV, AXL TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.8 VR 6 - 2792ccm, 140pk, 103kw - AES TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J, | 09.1990-06.2003 2.8 VR6 - 2792ccm, 204pk, 150kw - AMV, AXK TRANSPORTER Mk TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 1.9 D - 1896ccm, 60pk, 44kw - 1X TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 2.4 D - 2370ccm, 75pk, 55kw - AJA TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 2.5 - 2461ccm, 115pk, 85kw - AET, APL, AVT TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 2.5 Syncro - 2461ccm, 115pk, 85kw - AET, APL, AVT TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 2.5 TDI - 2461ccm, 102pk, 75kw - ACV, AUF, AYC TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 2.5 TDI - 2461ccm, 88pk, 65kw - AJT, AYY TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL, | 07.1990-04.2003 2.5 TDI Syncro - 2461ccm, 102pk, 75kw - ACV, AXL TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 1.9 D - 1896ccm, 60pk, 44kw - 1X TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 1.9 D - 1896ccm, 61pk, 45kw - 1X TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 1.9 TD - 1896ccm, 68pk, 50kw - ABL TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 2.0 - 1968ccm, 84pk, 62kw - AAC TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 2.4 D - 2370ccm, 78pk, 57kw - AAB TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 2.4 D - 2370ccm, 75pk, 55kw - AJA TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 2.4 D Syncro - 2370ccm, 78pk, 57kw - AAB TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 2.5 - 2461ccm, 110pk, 81kw - AAF, ACU, AEN, AEU TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 2.5 - 2461ccm, 115pk, 85kw - AET, APL, AVT TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 2.5 Syncro - 2461ccm, 110pk, 81kw - AAF, ACU, AEU TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 2.5 Syncro - 2461ccm, 115pk, 85kw - AET, APL, AVT TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 2.5 TDI - 2461ccm, 102pk, 75kw - ACV, AUF, AYC TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 2.5 TDI - 2461ccm, 151pk, 111kw - AHY, AXG TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 2.5 TDI - 2461ccm, 88pk, 65kw - AJT, AYY TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 2.5 TDI Syncro - 2461ccm, 102pk, 75kw - ACV, AXL TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 2.8 VR6 - 2792ccm, 140pk, 103kw - AES TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH) | 07.1990-04.2003 2.8 VR6 - 2792ccm, 204pk, 150kw - AMV, AXK -
Original part numbers
1 108 038 FORD 7M3 615 301 VAG -
Manufacturer
Otto Zimmermann GmbH has been producing various brake parts for the automotive industry for 50 years. The brand is known for its high-quality material use in combination with high-tech manufacturing methods. At Winparts you will find various Zimmermann products, including:
- Brake pads (Standard and Low-Dust-RD: Z)
- Standard brake discs
- Sports brake discs (Brake Z)
- Grooved brake discs (Black Z)
- Coated brake discs (Coat Z)
- Floating brake discs (Formula Z)
- BMW specific brake discs (Formula F)
- Calipers
- Brake shoe sets (standard and Kit Z)
- Brake drums
-
